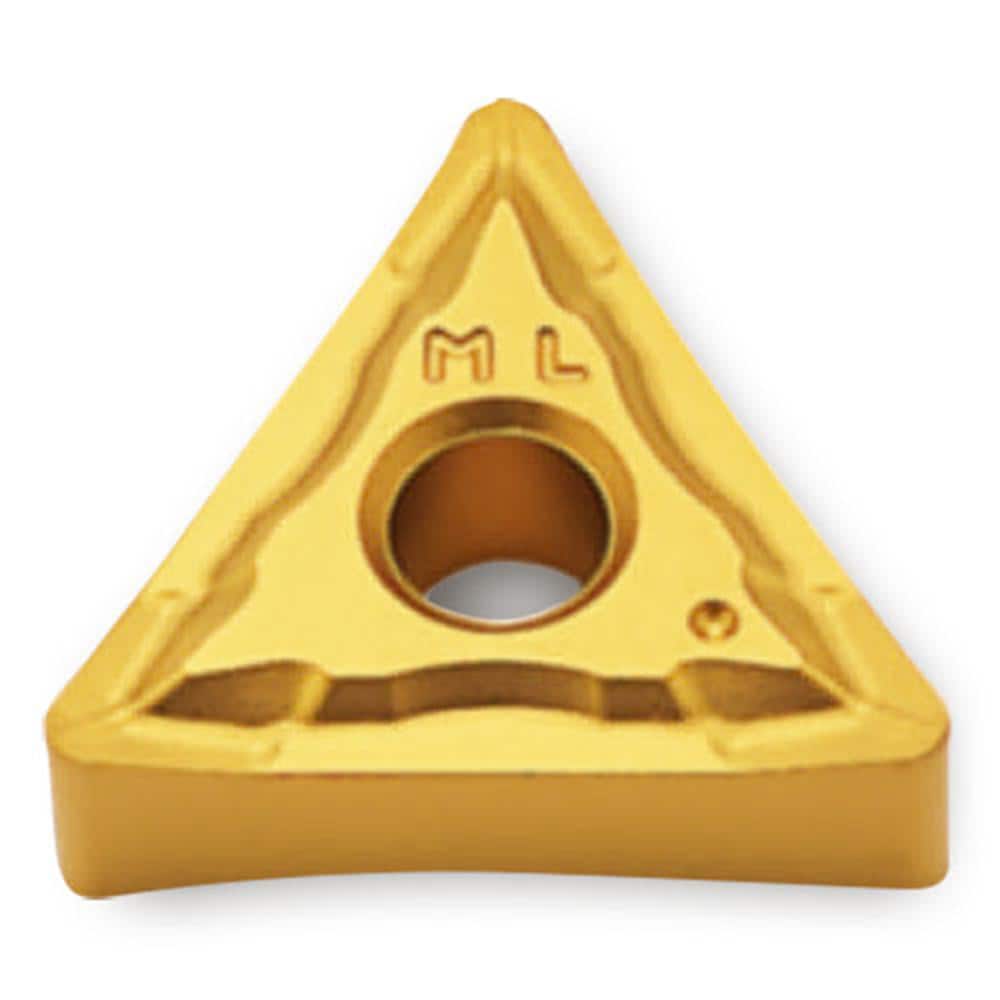

Brand: Ingersoll Cutting Tools / Part #: 5515074
Item #: 87516464
Brand: Ingersoll Cutting Tools
Model #: 5515074
Product Specifications
| Insert Style | TNMG |
| Insert Shape Code | T |
| Insert Size Code | 432 |
| Insert Shape | Triangle |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Manufacturer Grade | TT5100 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Insert Material | Solid Carbide |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Clearance Code | N |
| Tolerance Code | M |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | TNMG |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.8660 |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | TNMG432MLTT5100 |
| Iso Code | TNMG220408ML TT5100 |
| Chip Breaker | ML |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
