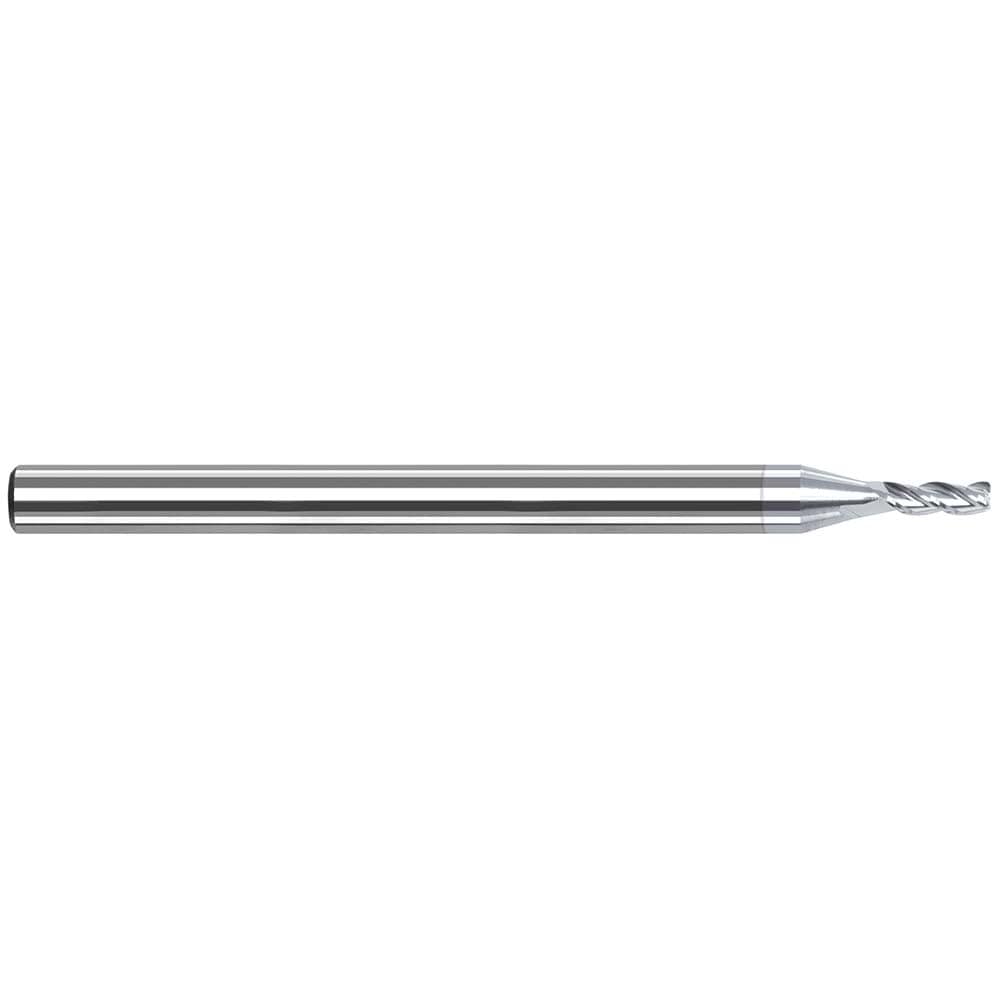

Corner Radius End Mill: 1/4" Dia, 3/8" LOC, 0.0050" Radius, 3 Flute, Solid Carbide
Item #: 05908603
Brand: Harvey Tool
Model #: 726116-C8
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.25 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 3/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | TiB2 |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0050 |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.5 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| UNSPSC Code | 27112803 |
| Series | Variable Helix End Mills for Aluminum Alloys - Corner Radius |
