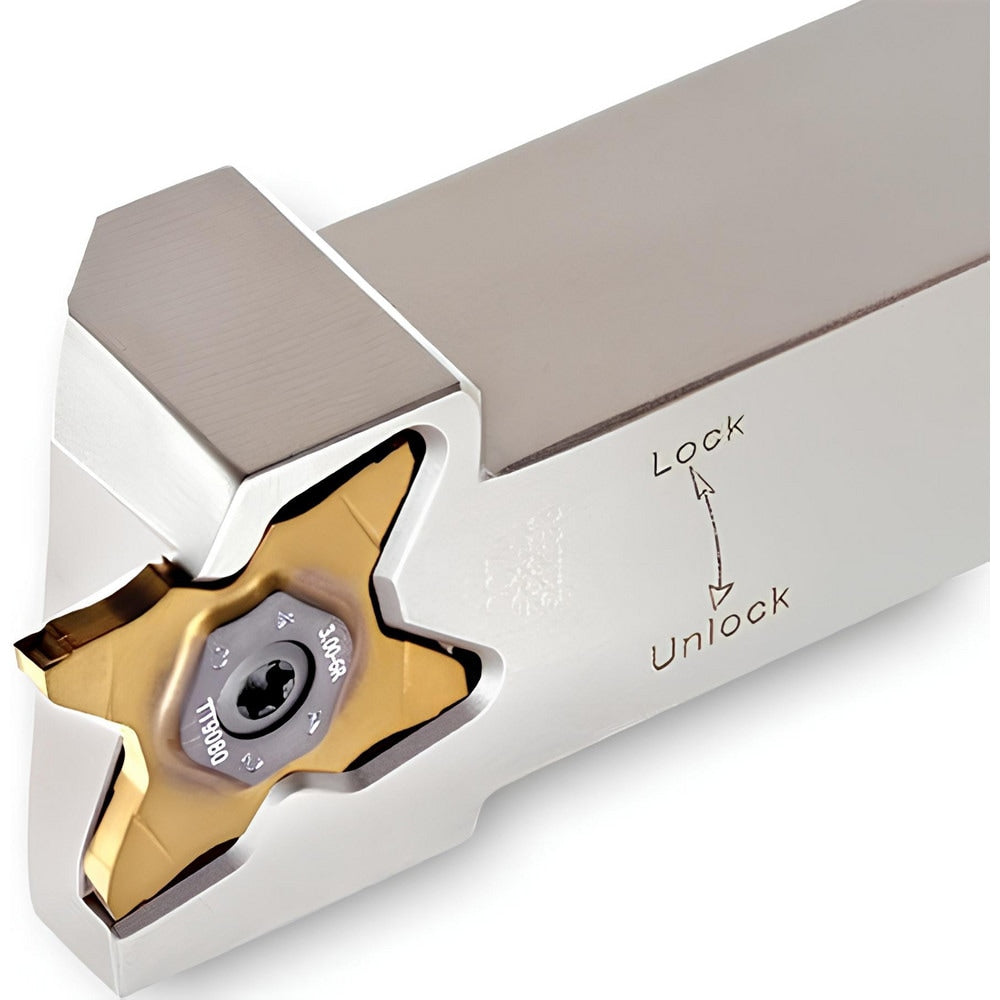

Brand: Ingersoll Cutting Tools / Part #: 6172761
Item #: 96427729
Brand: Ingersoll Cutting Tools
Model #: 6172761
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (Decimal Inch) | 0.3930 |
| Hand of Holder | Left Hand |
| Maximum Groove Width (Decimal Inch) | 0.1570 |
| Minimum Groove Width (Decimal Inch) | 0.0590 |
| Toolholder Style | TQHR |
| Tool Material | Steel |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 34 |
| Insert Compatibility | TQC34.. |
| Shank Height (mm) | 16.00 |
| Shank Length (mm) | 103.000 |
| Shank Width/Diameter (mm) | 16.00 |
| Series | TQHR |
| Overall Length (mm) | 135.0000 |
| Cutting Tool Application | Grooving; Parting |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5591 |
| Primary Workpiece Material | Universal |
| Manufacturers Catalog Number | TQHL16-34 |
| Complete Insert Compatibility | TQC34.. |
| Center to Cutting Edge (Decimal Inch) | 0.5591 |
| Number of Inserts Included in Order | 1 |
| Coolant Through | No |
