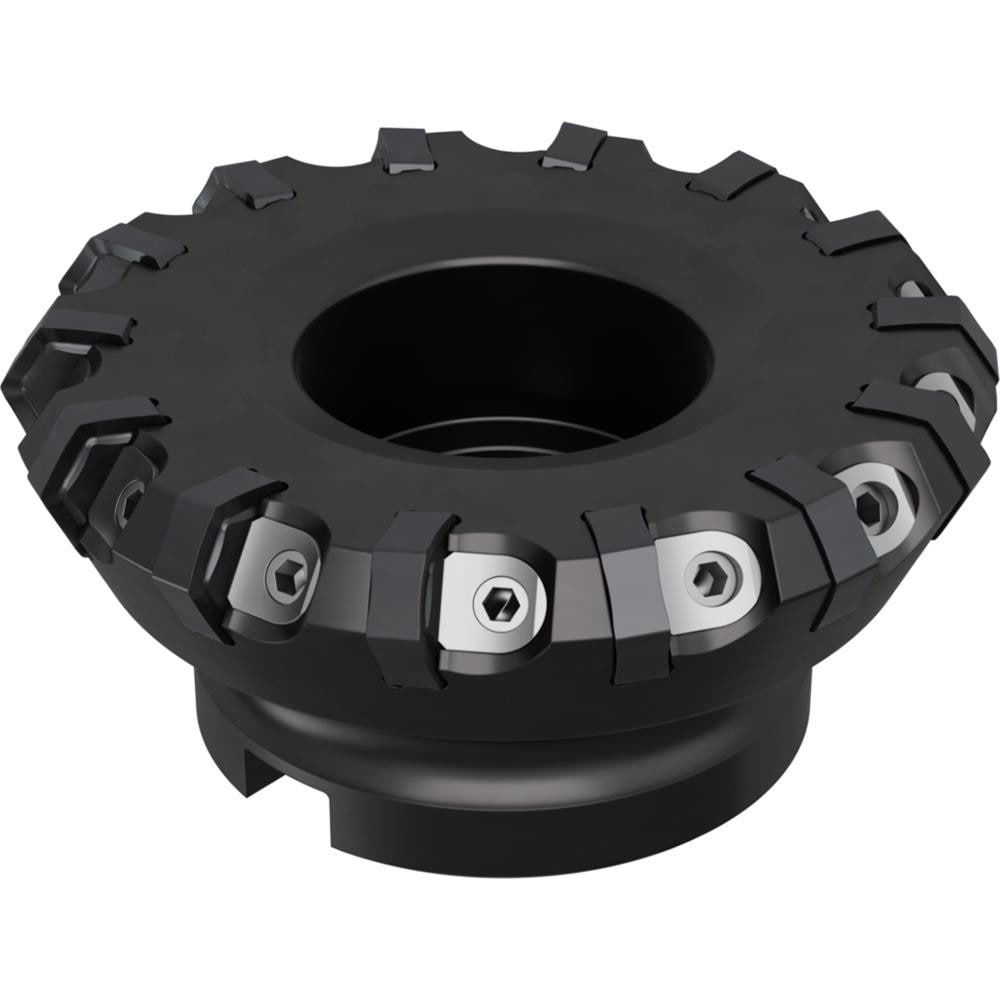

Brand: Widia / Part #: 6921243
Item #: 99600645
Brand: Widia
Model #: 6921243
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 6.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 6.4646 |
| Maximum Depth of Cut (Decimal Inch) | 0.2953 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Lead Angle | 56.000 |
| Compatible Insert Size Code | 110710 |
| Cutter Style | M1200 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Rake | Negative |
| Series | M1200 |
| Hub Diameter (mm) | 123.830 |
| Hub Diameter (Inch) | 4-7/8 |
| Overall Height (Decimal Inch) | 2.3800 |
| Maximum Body Diameter (Decimal Inch) | 5.5110 |
| Maximum Body Diameter (mm) | 139.98 |
| Maximum RPM | 2100.000 |
| Tool Application | Chamfering; Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | HNMF |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | M1200U600Z18S200HN11W |
| Number Of Cutter Inserts | 18 |
| Coolant Through | No |
| Number Of Flutes | 18 |
