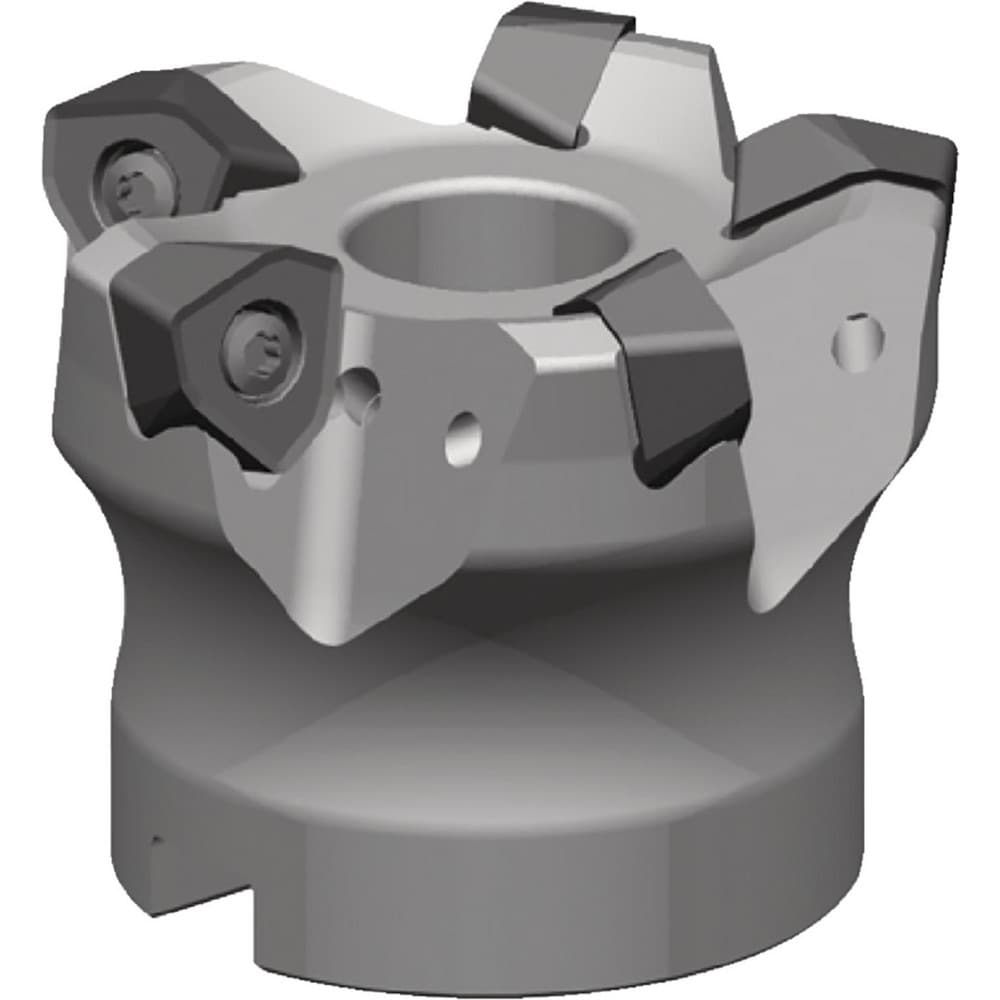

Brand: Widia / Part #: 5338923
Item #: 40049199
Brand: Widia
Model #: 5338923
Product Specifications
| Minimum Cutting Diameter (mm) | 108.05 |
| Maximum Cutting Diameter (mm) | 125.00 |
| Maximum Depth of Cut (mm) | 2.00 |
| Arbor Hole Diameter (mm) | 40.00 |
| Compatible Insert Size Code | WOEJ120713_R__ |
| Maximum Ramping Angle | 1 |
| Cutter Style | M370 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | M370 |
| Maximum Body Diameter (mm) | 121.00 |
| Keyway Width (mm) | 16.48 |
| Overall Height (Mm - 5 Decimals) | 63.00000 |
| Maximum RPM | 12350.000 |
| Tool Application | Facing; Helical Interpolation; Plunging; Slotting; Shouldering; Ramping |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Number Of Cutter Inserts | 9 |
| Number Of Flutes | 9 |
| Coolant Through | Yes |
