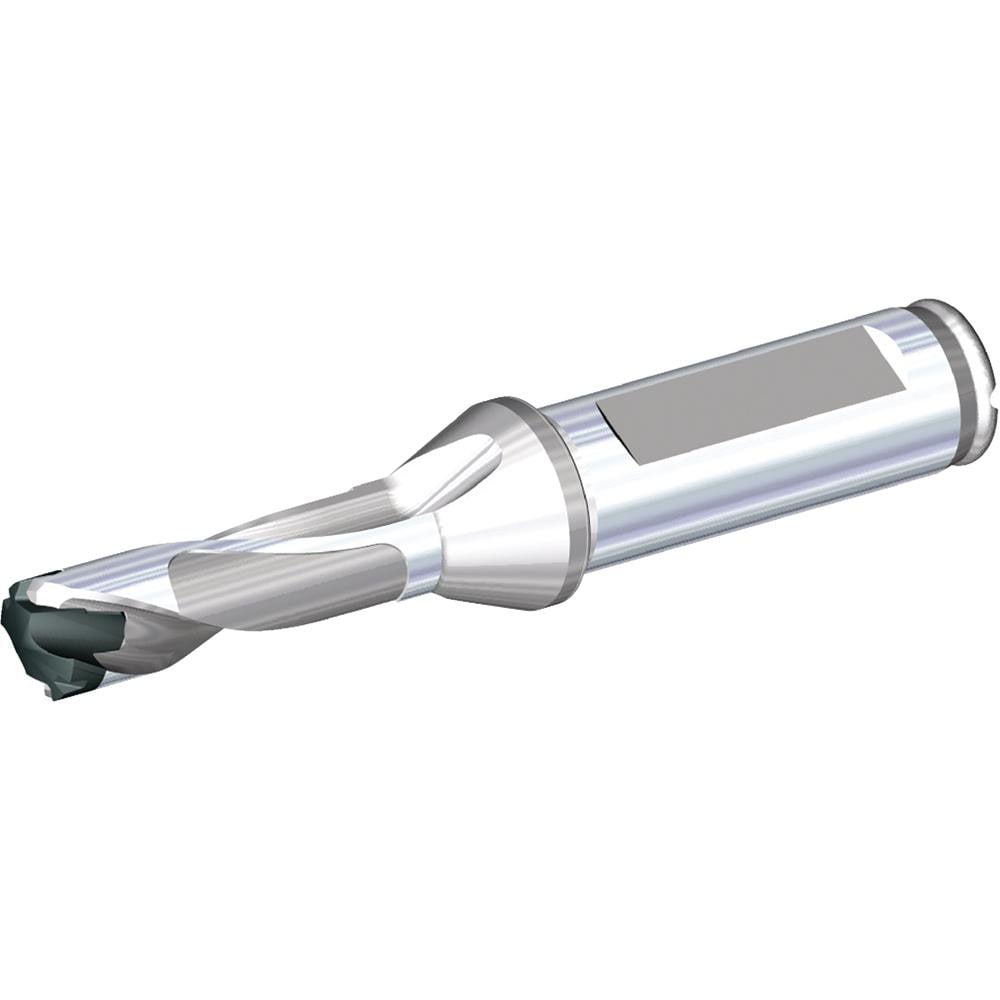

Brand: Widia / Part #: 4099022

Brand: Widia / Part #: 4099022


Item #: 90435595
Brand: Widia
Model #: 4099022

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.6299
Maximum Drill Diameter (Decimal Inch) 0.6689
Drill Depth by Diameter Ratio 3xD
Maximum Drill Depth (Decimal Inch) 2.0078
Shank Type Flatted
Insert Style TDM
Shank Diameter (Inch) 3/4
Shank Diameter (Decimal Inch) 0.7500
Insert Seat Size W25
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W25
Overall Length (Decimal Inch) 4.9685
Overall Length (Inch) 4-31/32
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 2.7835
Body Length (Decimal Inch) 2.6772
Shank Length (Decimal Inch) 1.9685
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.1134
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$265.33
