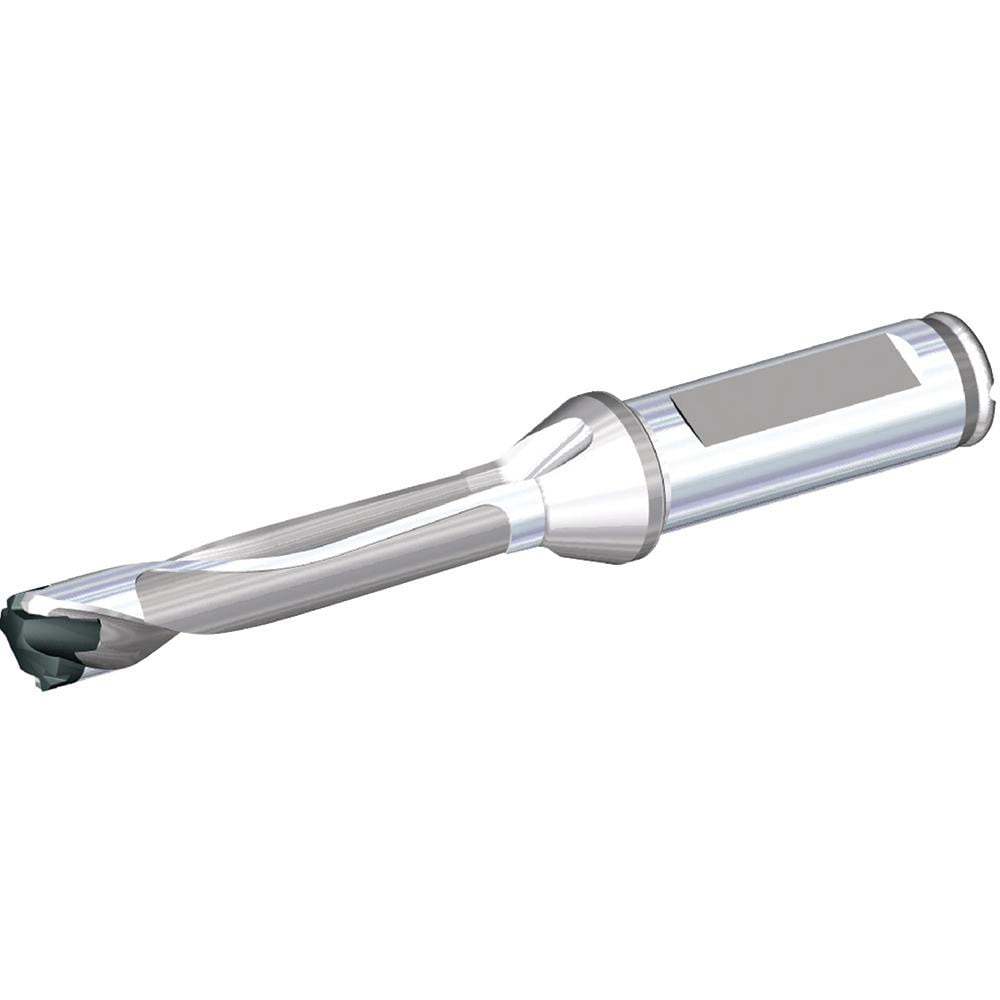

Brand: Widia / Part #: 3850939
Item #: 90088063
Brand: Widia
Model #: 3850939
Product Specifications
Minimum Drill Diameter (mm) | 14.00 |
Maximum Drill Diameter (mm) | 14.49 |
Drill Depth by Diameter Ratio | 5xD |
Maximum Drill Depth (mm) | 72.50 |
Shank Type | Flatted |
Insert Style | TDM |
Insert Seat Size | W22 |
Shank Diameter (mm) | 16.0000 |
Tool Material | Steel |
Compatible Insert Style | TDM |
Compatible Insert Size Code | W22 |
Overall Length (mm) | 144.5000 |
Series | TDM1 |
Toolholder Style | TDM1 |
Flute Length (mm) | 91.00 |
Body Length | 96.500 |
Shank Length (mm) | 48.000 |
Tool Application | Drilling |
Tool Performance | General Purpose |
Primary Workpiece Material | Universal |
Cutting Direction | Right Hand |
Coolant Through | Yes |
Number Of Flutes | 2 |
