Brand: Widia / Part #: 3883149
Item #: 02772051
Brand: Widia
Model #: 3883149
Product Specifications
| Minimum Bore Diameter (mm) | 48.000 |
| Maximum Bore Depth (mm) | 120.00 |

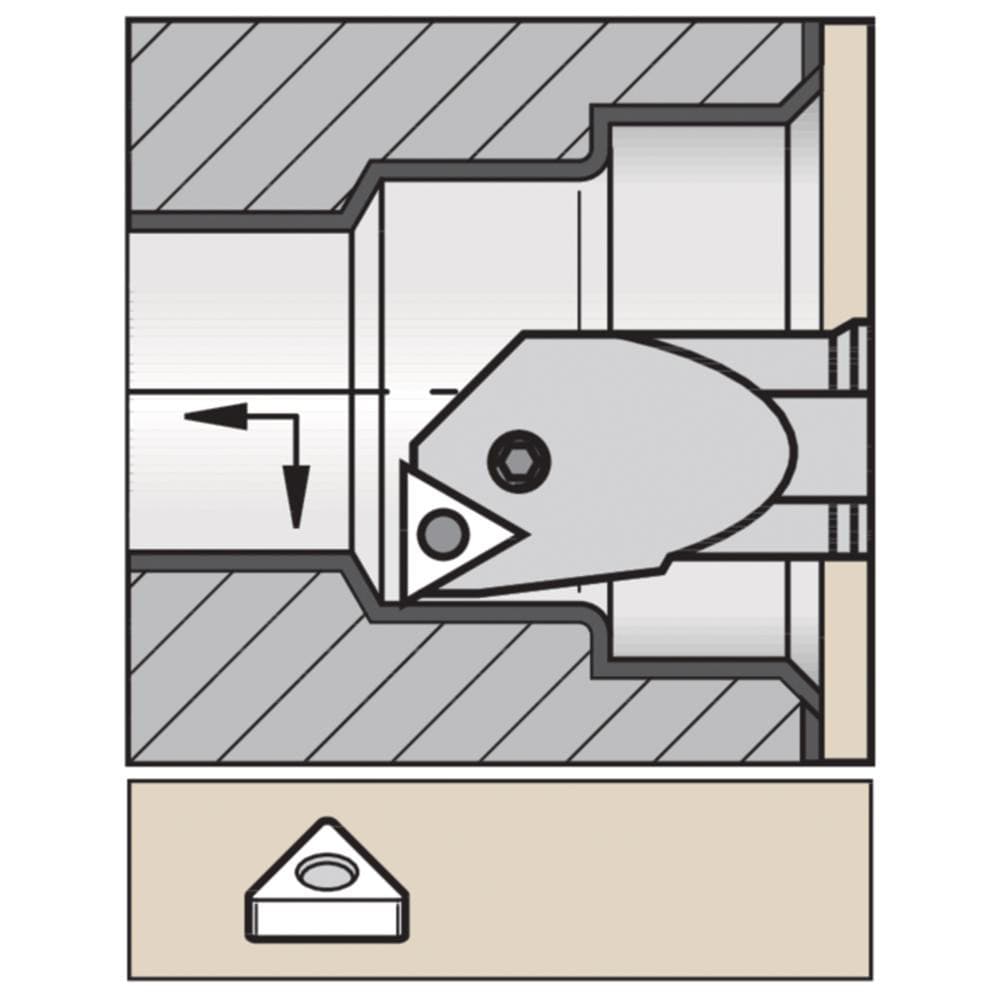

| Toolholder Style | PTFNR |
| Tool Material | Steel |
| Shank Diameter (mm) | 40.0000 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 400.0000 |
| Compatible Insert Size Code | TN..220408 |
| Insert Holding Method | Lever |
| Compatible Insert Shape | Triangle |
| Insert Included | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Rake Angle | -10.000 |
| Lead Angle | 90.000 |
| Series | A-PTFN |
| Insert Inscribed Circle (Inch) | 1/2 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Compatible Insert Thickness (mm) | 4.76 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 47.00 |
| Center to Cutting Edge (mm) | 27.00 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | A40VPTFNR22 |
| Radial Rake | -5 |
| Coolant Through | Yes |
