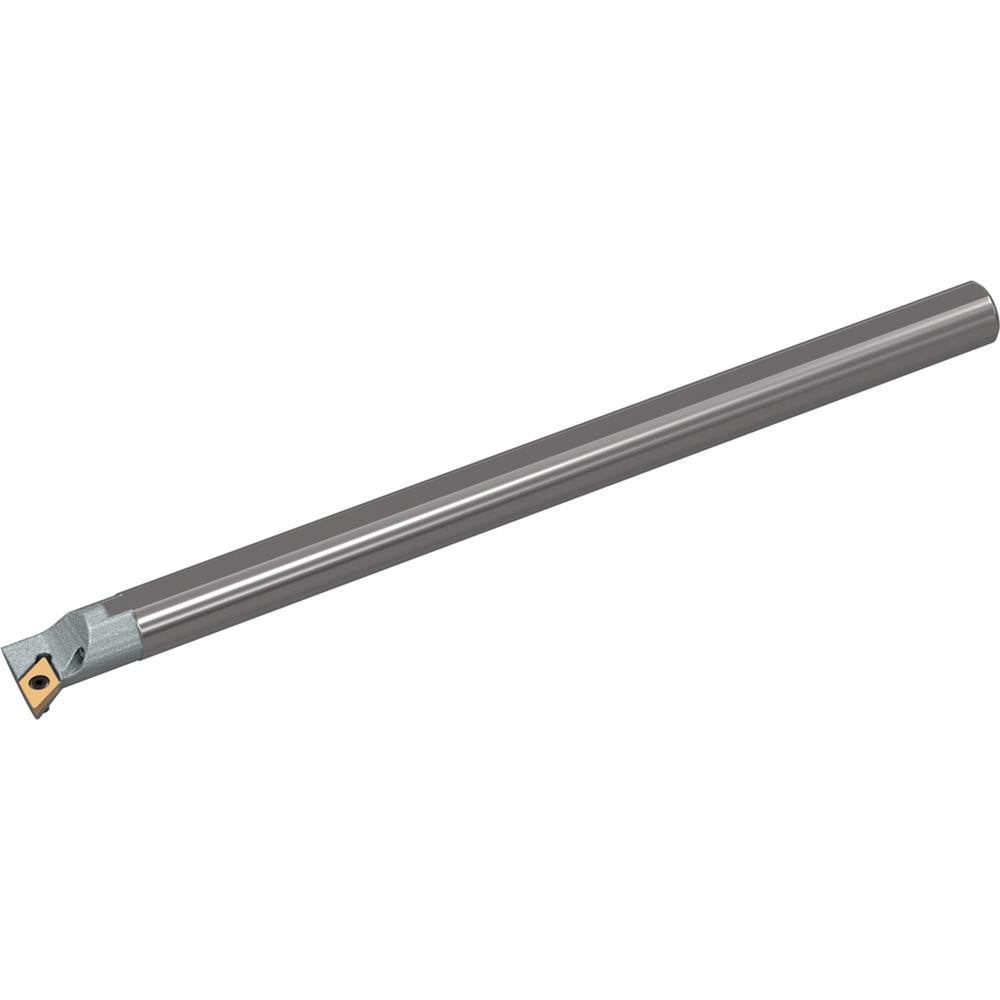

Brand: Widia / Part #: 5078324

Brand: Widia / Part #: 5078324


Item #: 02915072
Brand: Widia
Model #: 5078324

Product Specifications

Minimum Bore Diameter (Decimal Inch) 0.6000
Maximum Bore Depth (Decimal Inch) 1.1250
Toolholder Style SDUPR
Tool Material Steel
Shank Diameter (Decimal Inch) 0.3750
Hand of Holder Right Hand
Shank Diameter (Inch) 3/8
Overall Length (Decimal Inch) 6.0000
Overall Length (Inch) 6
Compatible Insert Size Code DP..2151
Insert Holding Method Screw
Compatible Insert Shape Diamond
Insert Included No
Rake Positive
Cutting Direction Right Hand
Rake Angle -3.000
Lead Angle -3.000
Series A-SDUP
Insert Inscribed Circle (Inch) 1/4
Compatible Insert Thickness (Decimal Inch) 0.0938
Compatible Insert Thickness (mm) 2.38
Multi-use Tool Yes
Cutting Tool Application Boring
Back of Bar to Cutting Edge (Decimal Inch) 0.5625
Center to Cutting Edge (Decimal Inch) 0.3750
Center to Cutting Edge (Inch) 3/8
Primary Workpiece Material Universal
Multi-Use Application Boring
Number of Inserts Used on Toolholder 1
Insert Thickness (Decimal Inch) 0.0938
Insert Thickness (Inch) 3/32
Coolant Hole Diameter (Decimal Inch) 0.1250
Number of Inserts Included in Order 0
Manufacturers Catalog Number A06MSDUPR2
Radial Rake 0
Coolant Through Yes
$141.86
