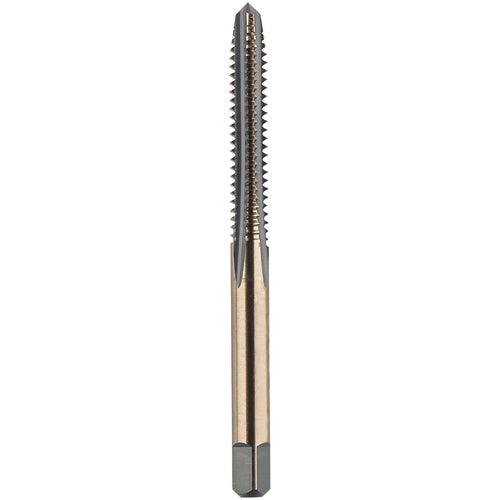

#0 NF, 80 TPI, 2 -Flute, H1 Bottoming Straight Flute Tap Series/List #114
Item #: MX1086789
Brand: Morse Cutting Tools
Model #: 86789
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #0 |
| Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 80 |
| Chamfer | 1 to 2 threads |
| Thread Standard | NF |
| Coating | Black & Gold |
| Overall Length (OAL) | 1-5/8″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 5/16″ |
| Style | Bottoming |
| Flute Count (NOF) | 2 |
| Measurement Type | Machine Screw |
| Cutting Edge Material | HSS |
| Series/List # | 114 |
| Thread Tolerance Class (TCTR) | H1 |
| Thread Size | #0 - 80 |
