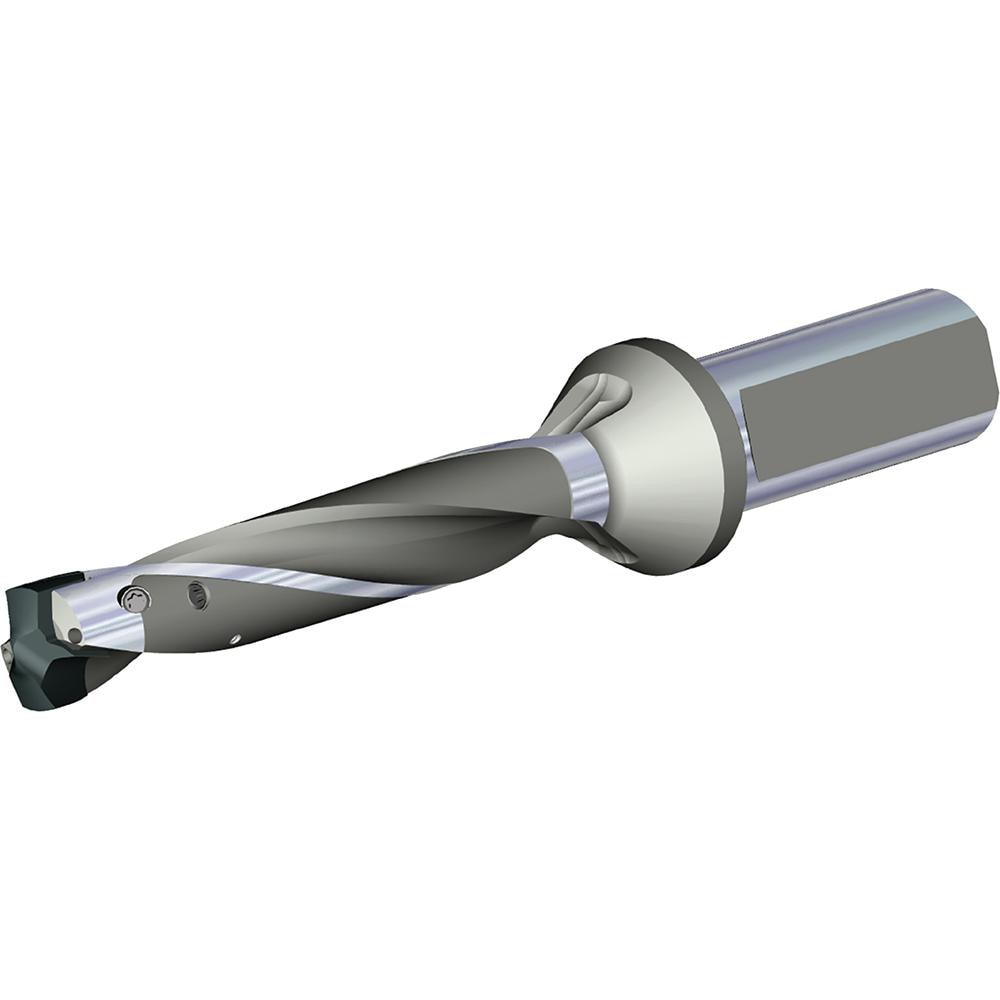

Brand: Widia / Part #: 6572206

Brand: Widia / Part #: 6572206


Item #: 90225251
Brand: Widia
Model #: 6572206

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.6300
Maximum Drill Diameter (Decimal Inch) 0.6692
Drill Depth by Diameter Ratio 5xD
Maximum Drill Depth (Decimal Inch) 3.3469
Shank Type Flatted
Insert Style TDMX
Shank Diameter (Inch) 3/4
Shank Diameter (Decimal Inch) 0.7500
Insert Seat Size A
Tool Material Steel
Compatible Insert Style TDMX
Compatible Insert Size Code A
Overall Length (Decimal Inch) 6.4961
Series TDMX
Toolholder Style TDMX
Flute Length (Decimal Inch) 3.3469
Body Length (Decimal Inch) 4.0472
Shank Length (Decimal Inch) 1.9685
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Coolant Hole Diameter (Decimal Inch) 0.1378
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$285.29
