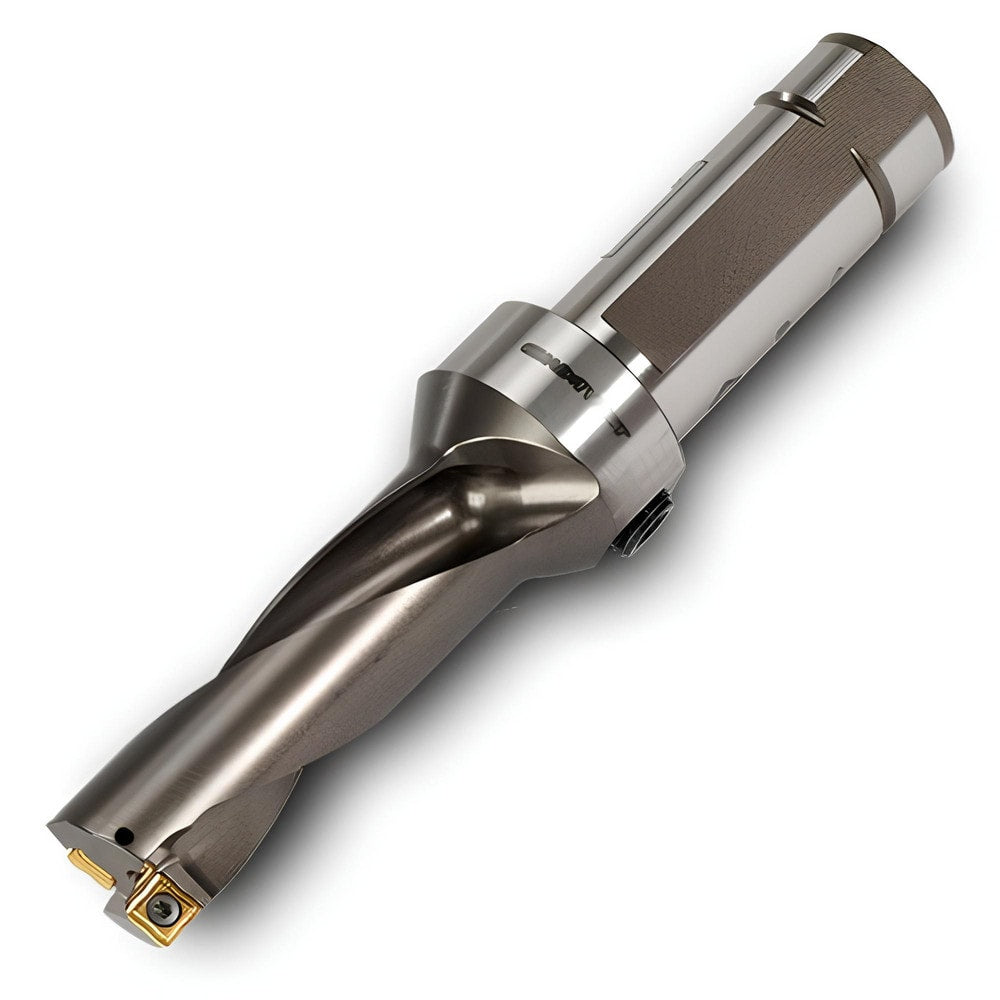

Brand: Ingersoll Cutting Tools / Part #: 6108598

Brand: Ingersoll Cutting Tools / Part #: 6108598


Item #: 12596797
Brand: Ingersoll Cutting Tools
Model #: 6108598

Product Specifications

Maximum Drill Depth 7.6600 in
Drill Depth by Diameter Ratio 5xD
Maximum Depth of Cut (Decimal Inch) 7.6600
Shank Type Combination
Shank Diameter (Inch) 1-1/4
Cutting Direction Right Hand
Drill Body Length to Flange (Decimal Inch) 9.1300
Toolholder Style QR03
Nose Diameter (Decimal Inch - 4 Decimals) 1.5310
Overall Length (Decimal Inch) 12.2800
Overall Length 12.28
Through Coolant Yes
Series QR
Flute Length (Decimal Inch) 7.6600
Shank Length (Decimal Inch) 3.1600
Primary Workpiece Material Universal
Primary Workpiece Material Code O
Flute Type Slow Spiral
Maximum Cutting Diameter (Decimal Inch) 1.5310
Number Of Flutes 2
Coolant Through Yes
$0.03
