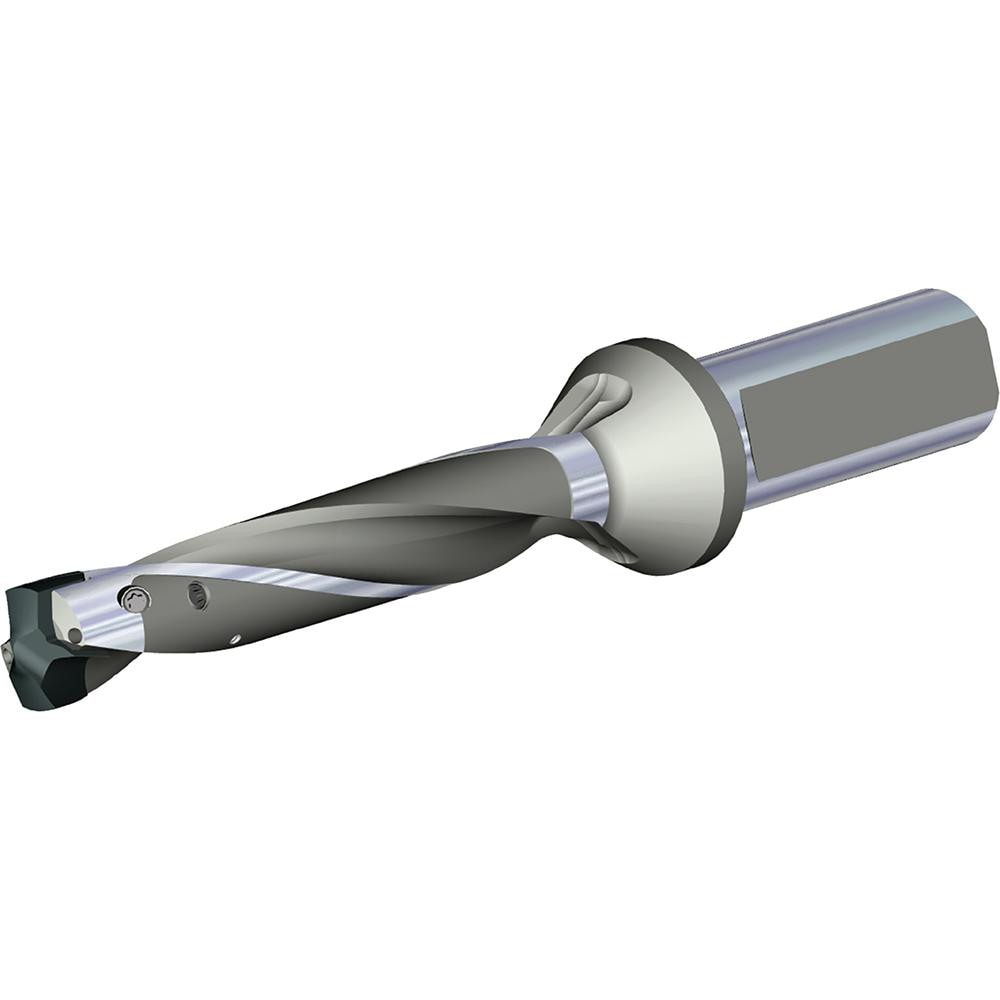

Brand: Widia / Part #: 6572208

Brand: Widia / Part #: 6572208


Item #: 90225483
Brand: Widia
Model #: 6572208

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.7087
Maximum Drill Diameter (Decimal Inch) 0.7480
Drill Depth by Diameter Ratio 5xD
Maximum Drill Depth (Decimal Inch) 3.7402
Shank Type Flatted
Insert Style TDMX
Shank Diameter (Inch) 1
Shank Diameter (Decimal Inch) 1.0000
Insert Seat Size C
Tool Material Steel
Compatible Insert Style TDMX
Compatible Insert Size Code C
Overall Length (Decimal Inch) 7.2441
Series TDMX
Toolholder Style TDMX
Flute Length (Decimal Inch) 3.7402
Body Length (Decimal Inch) 4.5157
Shank Length (Decimal Inch) 2.2047
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Coolant Hole Diameter (Decimal Inch) 0.1378
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$342.35
