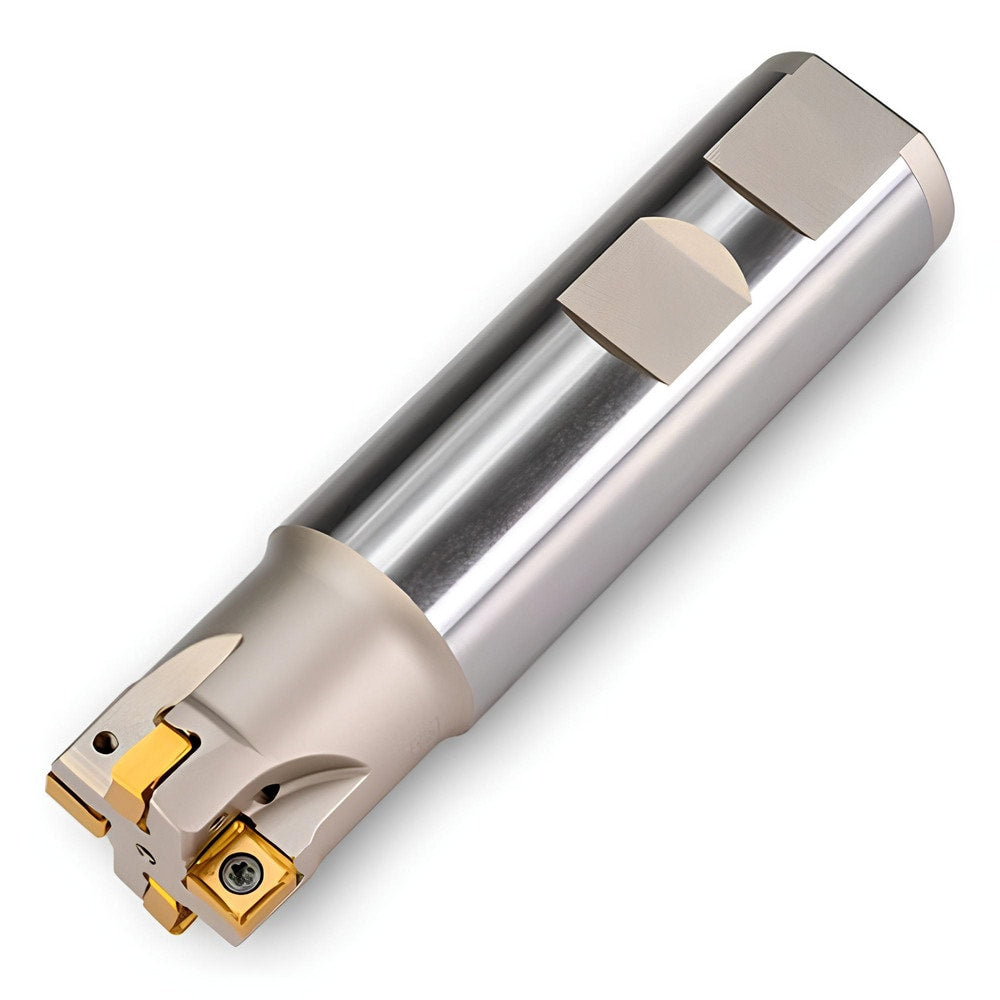

Brand: Ingersoll Cutting Tools / Part #: 2925655
Item #: 96734447
Brand: Ingersoll Cutting Tools
Model #: 2925655
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.6250 |
| Minimum Cutting Diameter (Inch) | 5/8 |
| Maximum Cutting Diameter (Decimal Inch) | 0.6250 |
| Maximum Cutting Diameter (Inch) | 5/8 |
| Maximum Depth of Cut (mm) | 4.83 |
| Maximum Depth of Cut (Decimal Inch) | 0.1900 |
| Cutter Style | 1DJ1E |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Maximum Ramping Angle | 0 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 67.5600 |
| Overall Length (Decimal Inch) | 2.6600 |
| Tool Material | Steel |
| Series | 1DJ1E |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 1.9600 |
| Shank Length (mm) | 49.780 |
| Head Length (Decimal Inch) | 0.7000 |
| Head Length (mm) | 17.78 |
| Tool Application | Facing; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Rougher/Finisher |
| Rake | Negative |
| Complete Insert Compatibility | SQGU07.. |
| Insert Compatibility | SQGU07.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 1DJ1E-0600779R01 |
| Usable Length (mm) | 17.780 |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 0.7000 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
