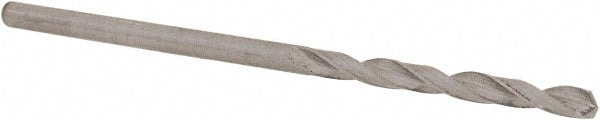

Brand: Guhring / Part #: 9003050018500
Item #: 88490776
Brand: Guhring
Model #: 9003050018500
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0728 |
| Drill Bit Size (Wire) | #49 |
| Drill Bit Material | Cobalt |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.0728 |
| Overall Length (mm) | 46.00 |
| Flute Length (mm) | 22.00 |
| Series | 305 |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 0.7600 |
| Maximum Drilling Depth (mm) | 19.23 |
| Shank Length (mm) | 24.00 |
| Drill Bit Diameter Tolerance | -0.014 to 0.000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | General Purpose |
| Standards | DIN 338 |
| Specification Number | DIN 338 |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Specification Designation | DIN |
