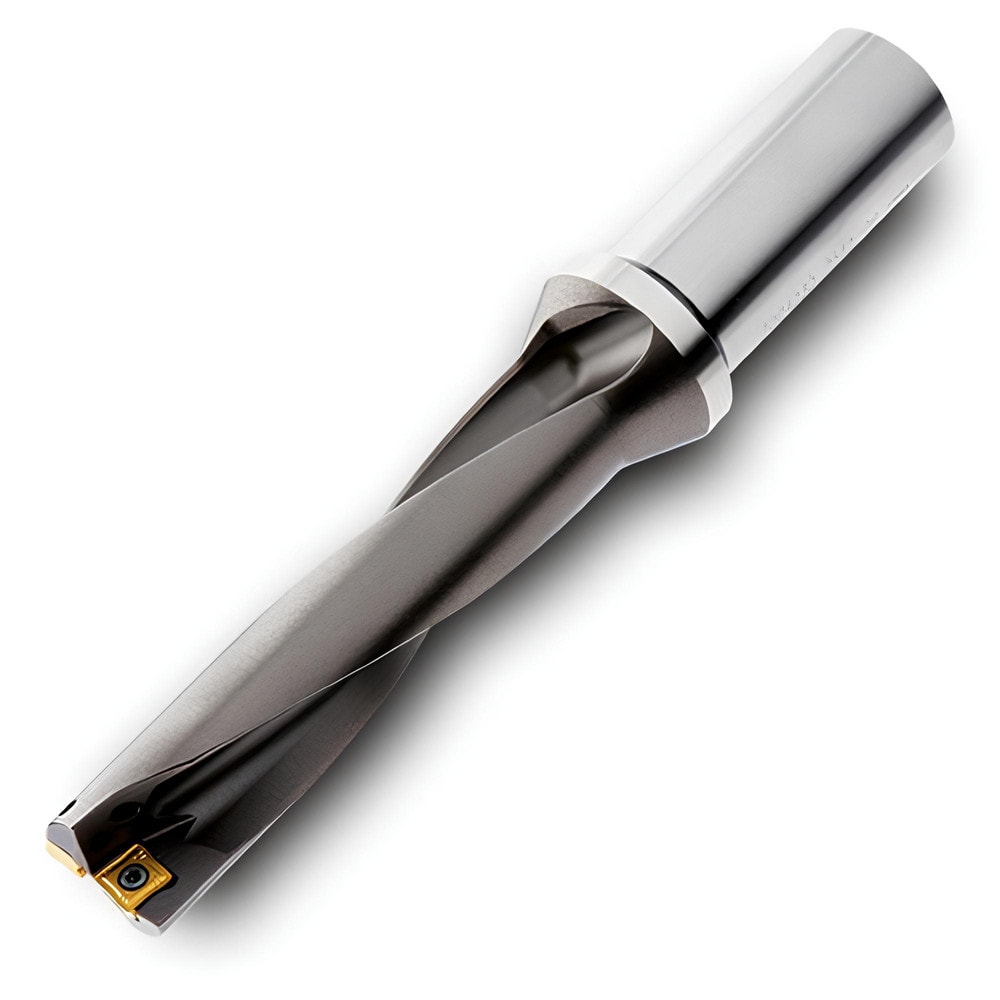

Brand: Ingersoll Cutting Tools / Part #: 6102647

Brand: Ingersoll Cutting Tools / Part #: 6102647


Item #: 95629101
Brand: Ingersoll Cutting Tools
Model #: 6102647

Product Specifications

Maximum Drill Depth 112.00 mm
Drill Depth by Diameter Ratio 4xD
Maximum Depth of Cut (mm) 112.00
Shank Type Weldon Flat
Shank Diameter (Inch) 63/64
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 135.00
Toolholder Style QR02
Nose Diameter (Mm) ( - 2 Decimals) 28.00
Nose Diameter (Decimal Inch - 4 Decimals) 1.1020
Overall Length (mm) 195.0000
Overall Length 195.00
Through Coolant Yes
Series QR
Flute Length (mm) 112.00
Shank Length (mm) 56.000
Primary Workpiece Material Universal
Primary Workpiece Material Code O
Flute Type Slow Spiral
Maximum Cutting Diameter (mm) 28.00
Maximum Cutting Diameter (Decimal Inch) 1.1020
Number Of Flutes 2
Coolant Through Yes
