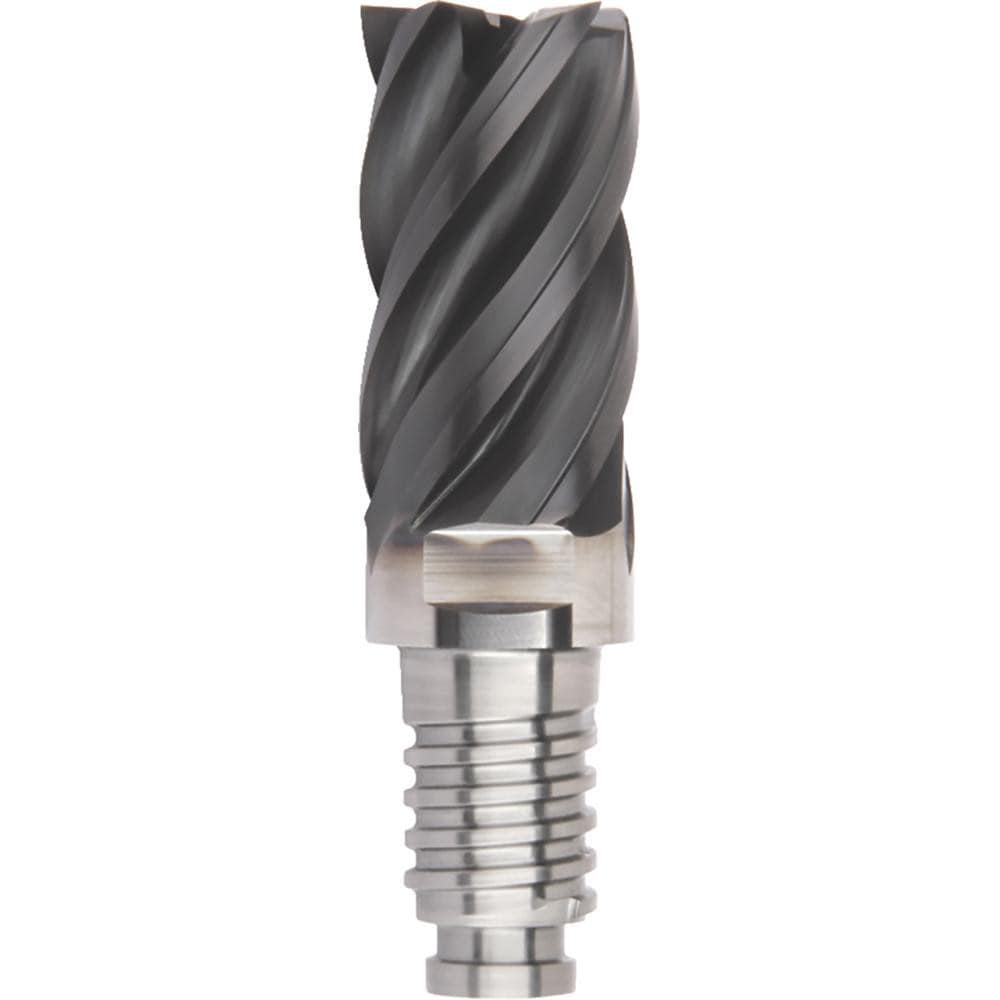

Brand: Widia / Part #: 6071391
Item #: 89838312
Brand: Widia
Model #: 6071391
Product Specifications
| Mill Diameter (Decimal Inch) | 0.9843 |
| Mill Diameter (mm) | 25.00 |
| Length of Cut (mm) | 37.5000 |
| Connection Type | Duo-Lock 25 |
| Overall Length (mm) | 87.9000 |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Center Cutting | NonCenter Cutting |
| Flute Type | Variable |
| Helix Angle | 38 |
| Helix Style | Medium |
| Material Grade | WS15PE |
| Maximum Helix Angle | 38 |
| Minimum Helix Angle | 38 |
| Series/List | 5748 |
| Variable Helix | No |
| Pitch | Normal |
| End Type | Corner Radius |
| Length Type | Standard |
| Number Of Pieces | 1 |
| Shank Type | Screw-On |
| Extended Reach | No |
| Single Or Double End | Single |
| Manufacturers Grade | WS15PE |
| Corner Radius (mm) | 3.00 |
| Material Application | Hard Material; High-Temperature Alloy; Steel |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.4764 |
| Variable Index | Yes |
| Manufacturers Catalog Number | 57482507DL25 |
| Number Of Flutes | 5 |
| Finish Coating | AlTiN |
