Brand: Widia / Part #: 3632135
Item #: 95912069
Brand: Widia
Model #: 3632135
Product Specifications
| Internal or External | Internal |

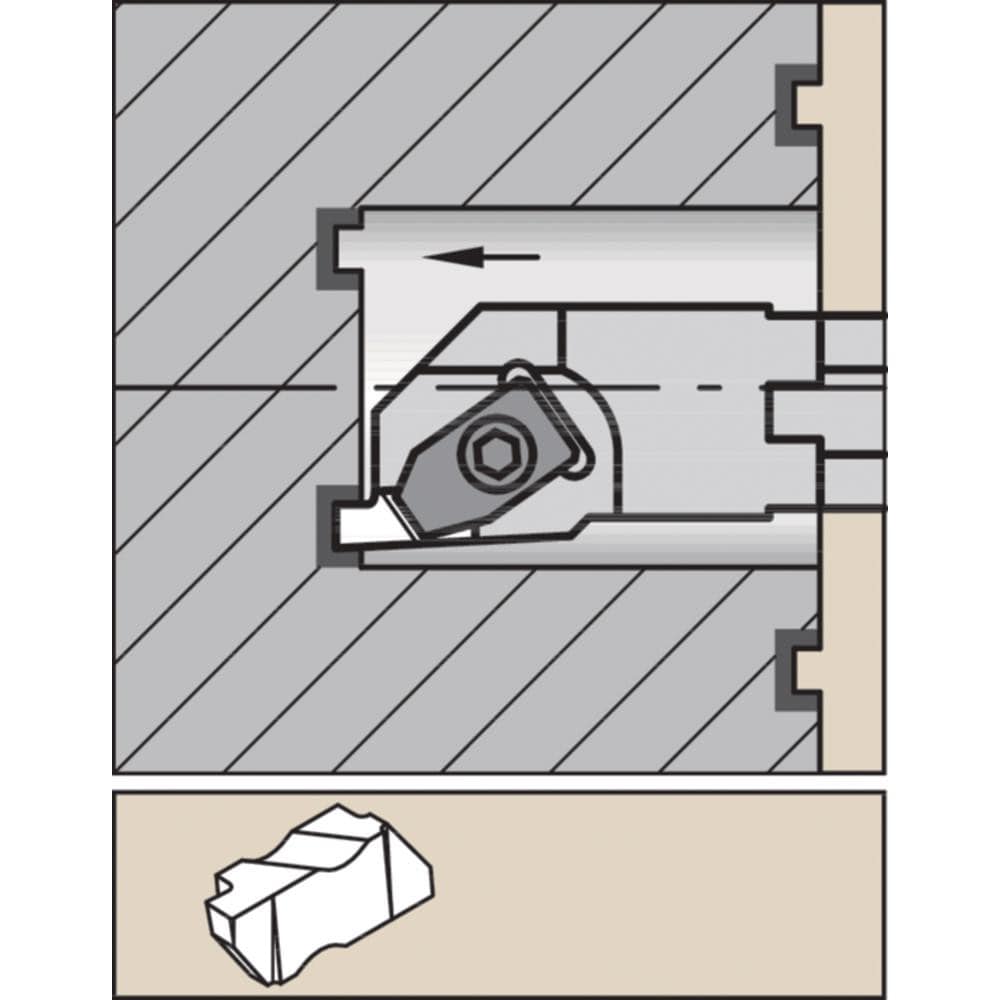

| Toolholder Type | Internal Grooving |
| Insert Seat Size | 3 |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Minimum Groove Width (Decimal Inch) | 0.0590 |
| Toolholder Style | UNSR |
| Maximum Groove Width (Decimal Inch) | 0.1880 |
| Insert Holding Method | Clamp |
| Insert Compatibility | N.3R |
| Compatible Insert Size Code | 3 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 0.0000 |
| Series | TOPGROOVE |
| Shank Length (Decimal Inch) | 0.0000 |
| Overall Length (Decimal Inch) | 14.0000 |
| Multi-use Tool | No |
| Cutting Tool Application | Undercutting |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.3900 |
| Center to Cutting Edge (Decimal Inch) | 0.7650 |
| Minimum Hole Diameter (Decimal Inch) | 2.2500 |
| Head Length (Decimal Inch) | 0.0000 |
| Primary Workpiece Material | Universal |
| Vibration Dampening | No |
| Coolant Hole Thread Size | 1/4-18 NPT |
| Maximum Bore Depth (Decimal Inch) | 7.7500 |
| Mount Type | Shank |
| Manufacturers Catalog Number | A20UNSR3 |
| Toolholder Material | Steel |
| Insert Hand | Right Hand |
| Complete Insert Compatibility | N.3R |
| Minimum Bore Diameter (Decimal Inch) | 2.2500 |
| Coolant Through | Yes |
