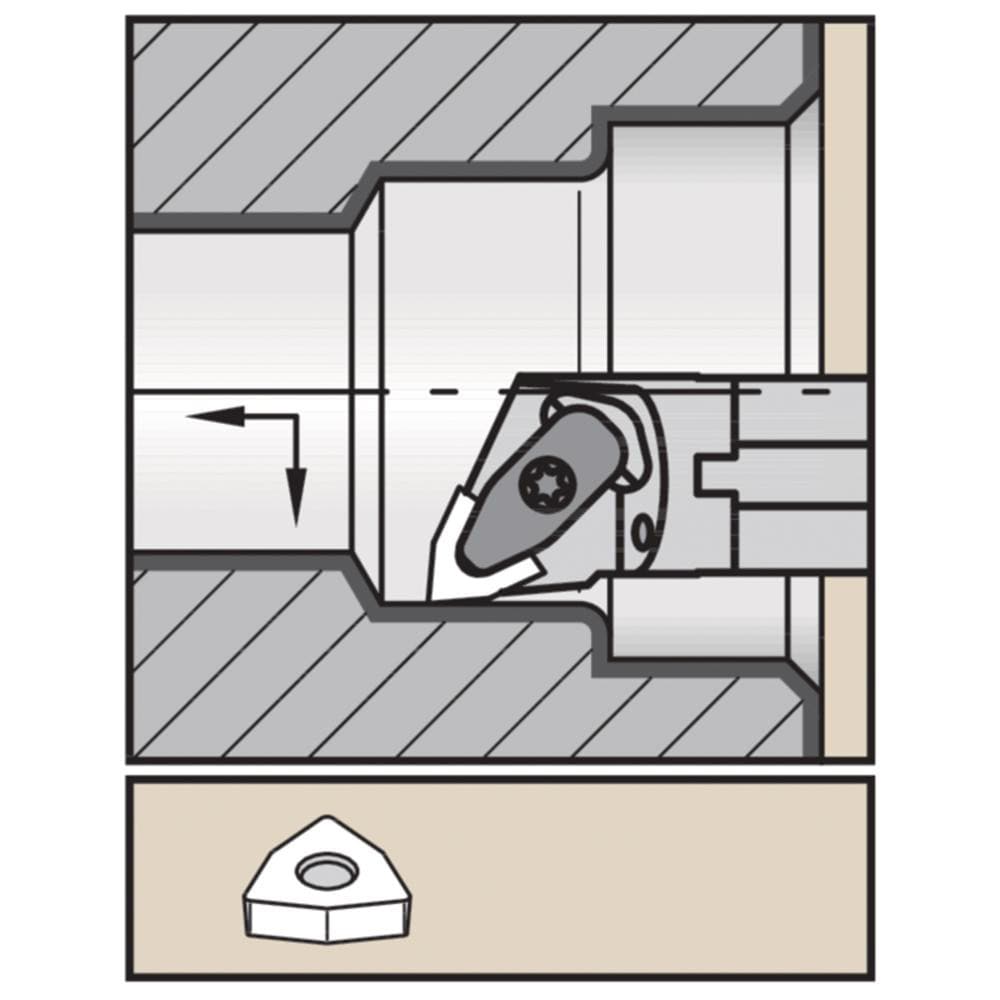

Brand: Widia / Part #: 5696281

Brand: Widia / Part #: 5696281


Item #: 02777936
Brand: Widia
Model #: 5696281

Product Specifications

Minimum Bore Diameter (mm) 40.000
Maximum Bore Depth (mm) 96.00
Toolholder Style DWLNR
Tool Material Steel
Shank Diameter (mm) 32.0000
Hand of Holder Right Hand
Overall Length (mm) 250.0000
Compatible Insert Size Code WN..080408
Insert Holding Method Clamp
Compatible Insert Shape Trigon
Insert Included No
Rake Negative
Cutting Direction Right Hand
Rake Angle -14.000
Lead Angle 95.000
Series A-DWLN
Insert Inscribed Circle (Inch) 1/2
Compatible Insert Thickness (Decimal Inch) 0.1875
Compatible Insert Thickness (mm) 4.76
Multi-use Tool Yes
Cutting Tool Application Boring
Back of Bar to Cutting Edge (mm) 38.00
Center to Cutting Edge (mm) 22.00
Primary Workpiece Material Universal
Multi-Use Application Boring
Number of Inserts Used on Toolholder 1
Insert Thickness (Decimal Inch) 0.1875
Insert Thickness (Inch) 3/16
Coolant Hole Diameter (mm) 6.40
Number of Inserts Included in Order 0
Manufacturers Catalog Number A32SDWLNR08KC04
Radial Rake -5
Coolant Through Yes
$277.83
