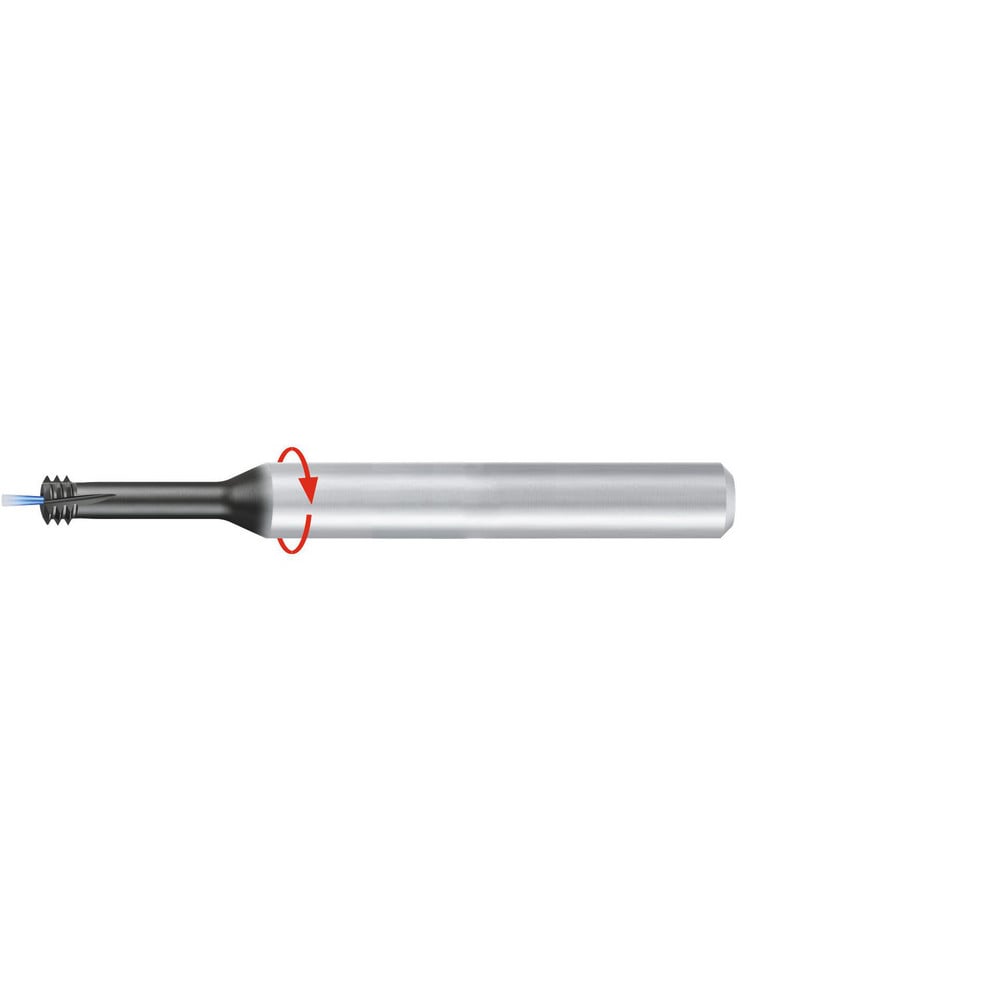

Brand: Emuge / Part #: GF26A729.5658
Item #: 93326023
Brand: Emuge
Model #: GF26A729.5658
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | #6-32 |
| Thread Depth (mm) | 8.20 |
| Thread Depth | 0.2870 |
| Thread Type | Left Hand |
| Shank Diameter (mm) | 3.0000 |
| Cutting Diameter (mm) | 2.70 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.1060 |
| Length of Cut (mm) | 2.3000 |
| Minimum Nominal Diameter (Decimal Inch) | 0.2040 |
| Minimum Nominal Diameter (Inch) | #6 |
| Minimum Nominal Diameter (mm) | 0.00 |
| Shank Length (mm) | 28.000 |
| Overall Length (mm) | 39.0000 |
| Thread Standard | UNC |
| Flute Direction | Left Hand |
| Material Grade | Ultra Fine Grain |
| Series | GF26A |
| Number Of Flutes | 4 |
| Coating/Finish | TiALN |
| Coolant Through | No |
| Thread Direction | Left Hand/Right Hand |
| Teeth Per Inch | 32 |
