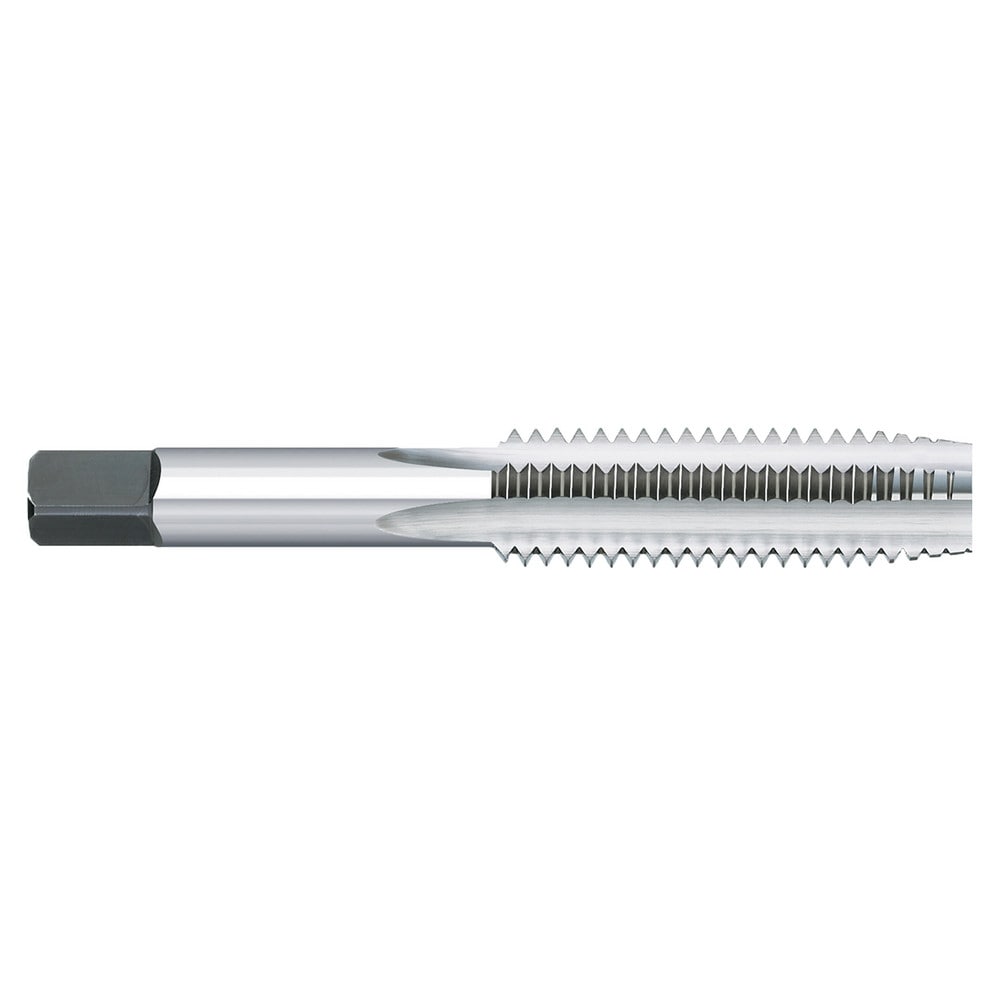

Straight Flute Tap: #8-32 UNC, 4 Flute, Bottoming Chamfer, 2B/3B Class of Fit, HSS, Bright/Uncoated Finish
Item #: 87741997
Brand: Titan USA
Model #: TT82925
Product Specifications
| Thread Size (Inch) | #8-32 |
| Thread Standard | UNC |
| Chamfer | Bottoming |
| Material | High-Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Class Of Fit | 2B/3B |
| Thread Limit | H3 |
| Number Of Flutes | 4 |
| Overall Length (Decimal Inch) | 2.1250 |
| Overall Length (Inch) | 2-1/8 |
| Threads per Inch | 32 |
| Thread Pitch (Decimal Inch) | 0.0313 |
| Thread Length (Decimal Inch) | 0.7500 |
| Thread Length (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Square Length (Inch) | 1/4 |
| Square Size (Decimal Inch) | 0.1310 |
| Series | General Purpose Taps - High Speed Steel - Hand Taps - Left Hand |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
