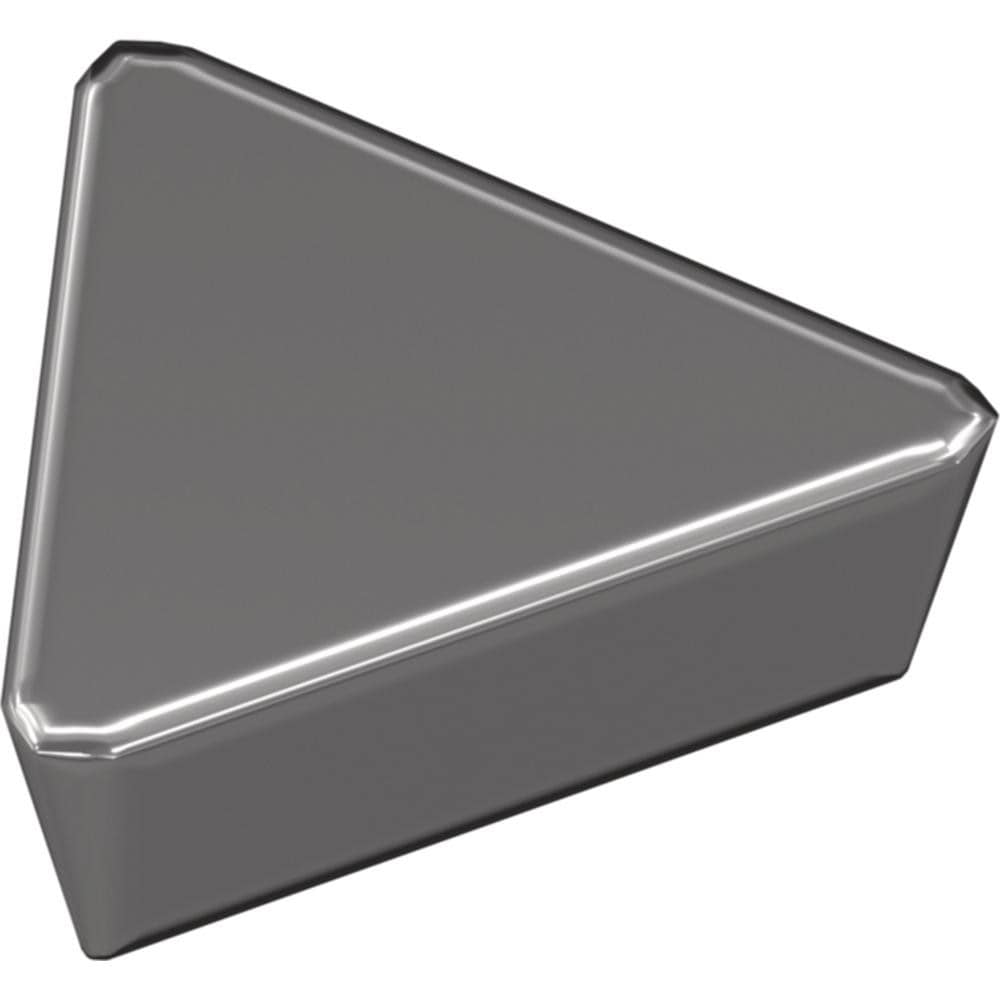

Brand: Widia / Part #: 2557760
Item #: 95103172
Brand: Widia
Model #: 2557760
Product Specifications
| Insert Style | TPAN |
| Insert Size Code | 2204 |
| Insert Size | 22 |
| Insert Material | Carbide |
| Manufacturer Grade | THM |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Insert Hand | Left Hand |
| Relief Angle | 11.000 |
| Series | TPAN |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.8646 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Triangle |
| Rake | Positive |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | TPAN2204PDL |
| Iso Code | TPAN2204PDL |
| Manufacturers Catalog Number | TPAN2204PDL |
| Cutter Series Compatibility | ISO |
| Chip Breaker | None |
| Cutting Direction | Left Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Triangle |
| Insert Holding Method | Clamp |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.8646 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.8646 |
