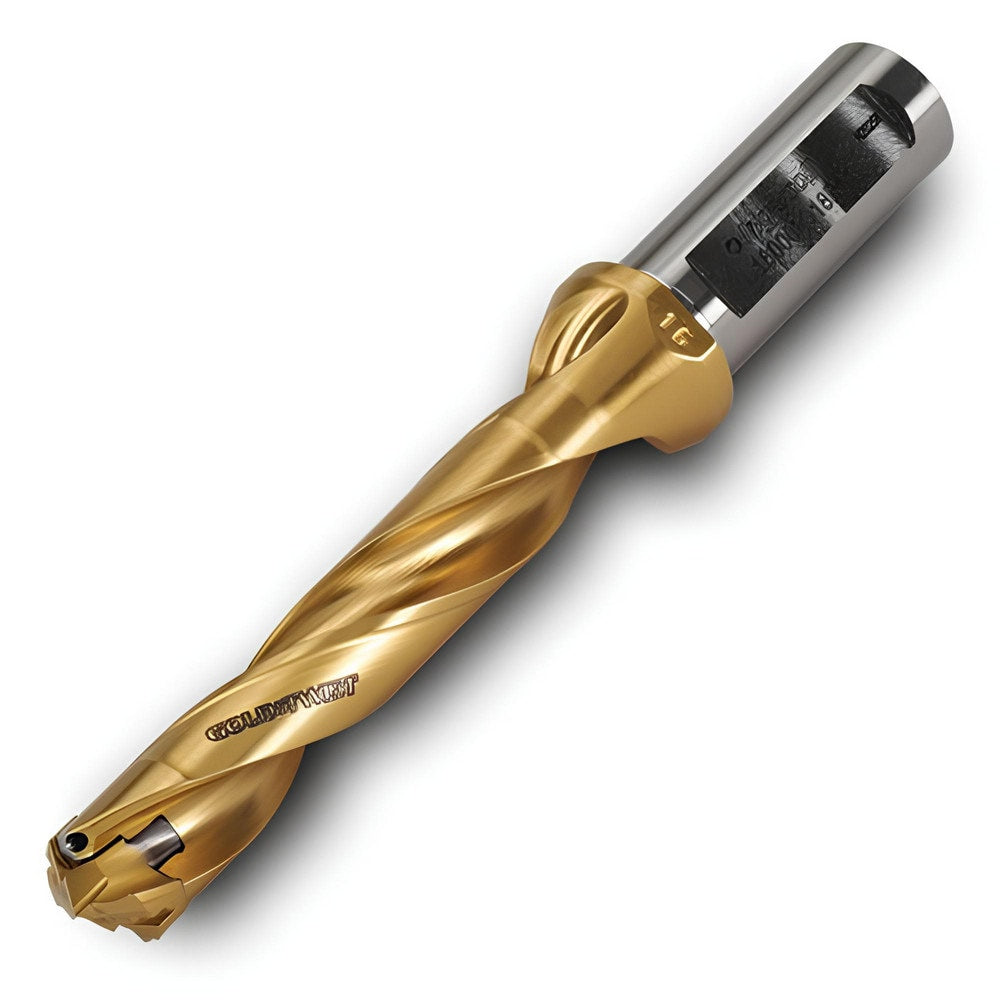

Brand: Ingersoll Cutting Tools / Part #: 6102125
Item #: 98736903
Brand: Ingersoll Cutting Tools
Model #: 6102125
Product Specifications
| Minimum Drill Diameter (mm) | 7.00 |
| Maximum Drill Diameter (mm) | 7.40 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 21.00 |
| Shank Type | Weldon Flat |
| Insert Style | TPA; TNA; TPC; TMA; TKA |
| Insert Seat Size | 7 |
| Shank Diameter (mm) | 12.0000 |
| Tool Material | Steel |
| Compatible Insert Style | TPA; TNA; TPC; TMA; TKA |
| Compatible Insert Size Code | 07.. |
| Overall Length (mm) | 76.0000 |
| Series | TD |
| Toolholder Style | TD |
| Flute Length (mm) | 31.00 |
| Body Length | 31.000 |
| Shank Length (mm) | 45.000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Coating Classification | PVD |
