Brand: Widia / Part #: 2832057

Brand: Widia / Part #: 2832057


Item #: 02773737
Brand: Widia
Model #: 2832057

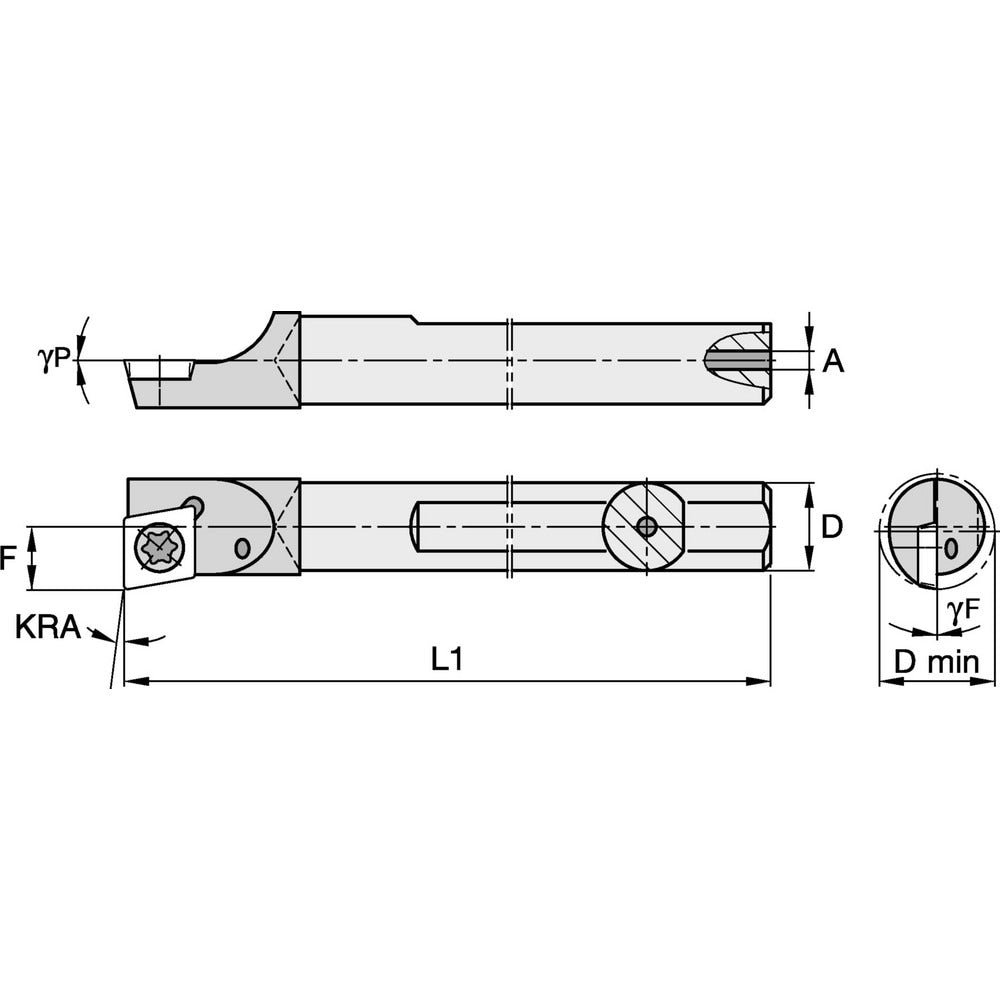

Product Specifications

Minimum Bore Diameter (Decimal Inch) 0.2850
Maximum Bore Depth (Decimal Inch) 1.7500
Toolholder Style CCBI
Tool Material Carbide
Shank Diameter (Decimal Inch) 0.2500
Hand of Holder Left Hand
Shank Diameter (Inch) 1/4
Overall Length (Decimal Inch) 4.0000
Overall Length (Inch) 4
Compatible Insert Size Code CD..120605
Insert Holding Method Screw
Compatible Insert Shape Diamond
Insert Included No
Rake Positive
Cutting Direction Left Hand
Rake Angle 0.000
Lead Angle -5.000
Series CCBI
Insert Inscribed Circle (Inch) 5/32
Compatible Insert Thickness (Decimal Inch) 0.0400
Compatible Insert Thickness (mm) 1.02
Multi-use Tool Yes
Cutting Tool Application Boring
Back of Bar to Cutting Edge (Decimal Inch) 0.2700
Center to Cutting Edge (Decimal Inch) 0.1450
Primary Workpiece Material Universal
Multi-Use Application Boring
Number of Inserts Used on Toolholder 1
Neck Diameter (Decimal Inch) 0.2630
Insert Thickness (Decimal Inch) 0.0400
Coolant Hole Diameter (Decimal Inch) 0.0470
Number of Inserts Included in Order 0
Manufacturers Catalog Number CCBI25045L
Radial Rake 5
Coolant Through Yes
