Brand: Widia / Part #: 3634282
Item #: 98001746
Brand: Widia
Model #: 3634282
Product Specifications
| Internal or External | External |

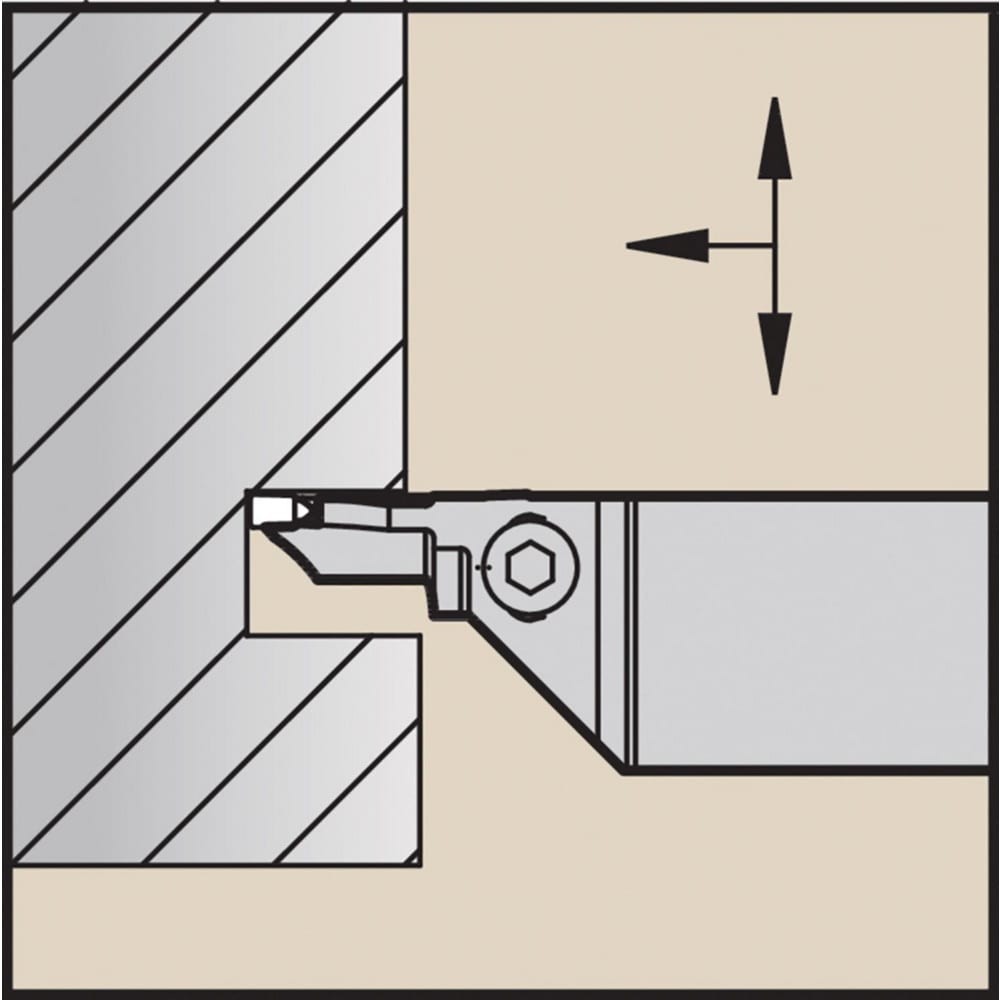

| Toolholder Type | Face Grooving |
| Insert Seat Size | 3 |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (mm) | 15.88 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 3.00 |
| Toolholder Style | WMT |
| Insert Holding Method | Clamp |
| Insert Compatibility | WMTS300M3P03PT |
| Compatible Insert Size Code | 3 |
| Shank Width/Diameter (mm) | 24.84 |
| Shank Height (mm) | 115.89 |
| Series | WMT |
| Shank Length (mm) | 115.890 |
| Overall Length (mm) | 150.0000 |
| Multi-use Tool | No |
| Cutting Tool Application | Face Grooving |
| Back of Bar to Cutting Edge (mm) | 0.00 |
| Head Height (mm) | 25.760 |
| Head Length (mm) | 0.00 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Multi-Use Application | No |
| Maximum Groove Outside Diameter (mm) | 100.00 |
| Mount Type | Shank |
| Manufacturers Catalog Number | WMTAR2525M316-070-100 |
| Toolholder Material | Steel |
| Insert Hand | Right Hand |
| Complete Insert Compatibility | WMTS3 |
| Coolant Through | No |
| Minimum Bore Diameter (mm) | 70.000 |
| Maximum Bore Depth (mm) | 0.00 |
