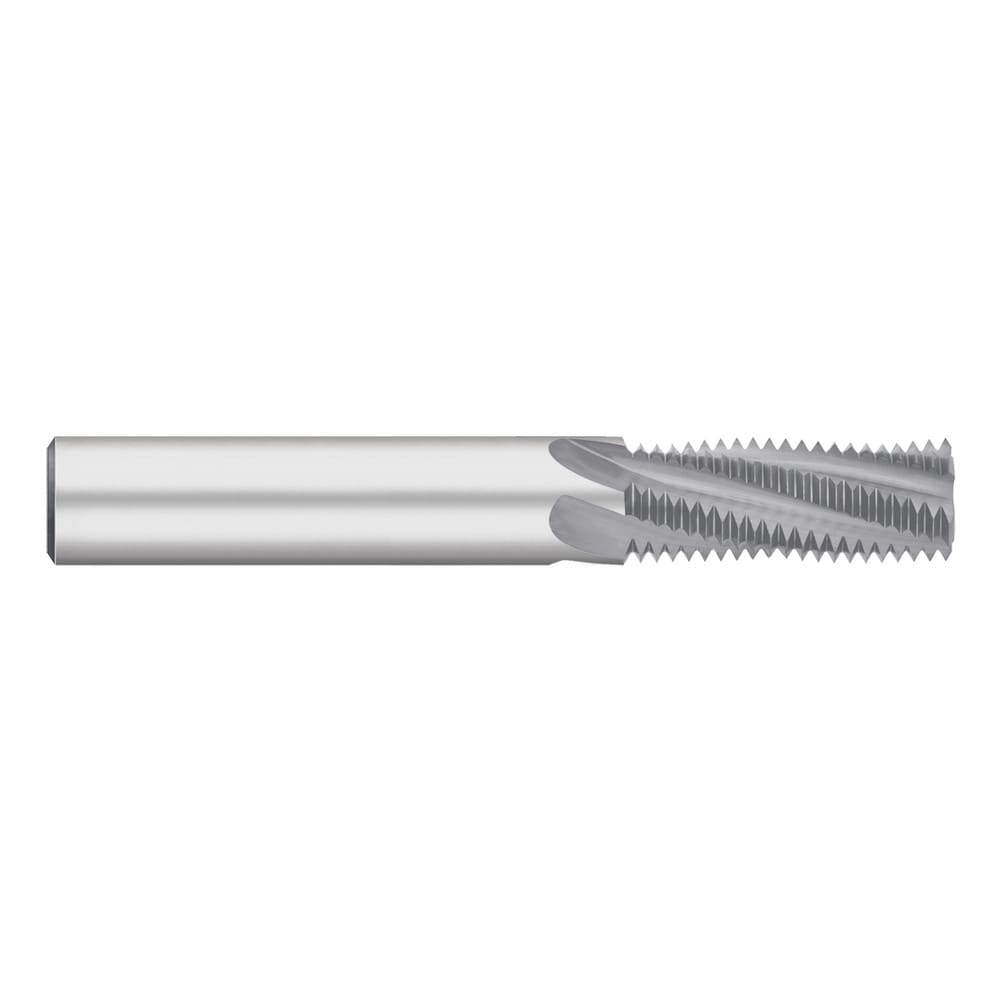

Brand: Titan USA / Part #: TC83935
Item #: 87721858
Brand: Titan USA
Model #: TC83935
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 5/8-11 |
| Thread Depth | 1.25 |
| Thread Type | Internal/External |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Cutting Diameter (Decimal Inch) | 0.4700 |
| Length of Cut (Inch) | 1-1/4 |
| Minimum Nominal Diameter (Decimal Inch) | 0.6250 |
| Shank Length (Decimal Inch) | 2.2500 |
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Length (Inch) | 3-1/2 |
| Number Of Flutes | 5 |
| Coating/Finish | Uncoated |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Thread Length (Decimal Inch) | 1.2500 |
