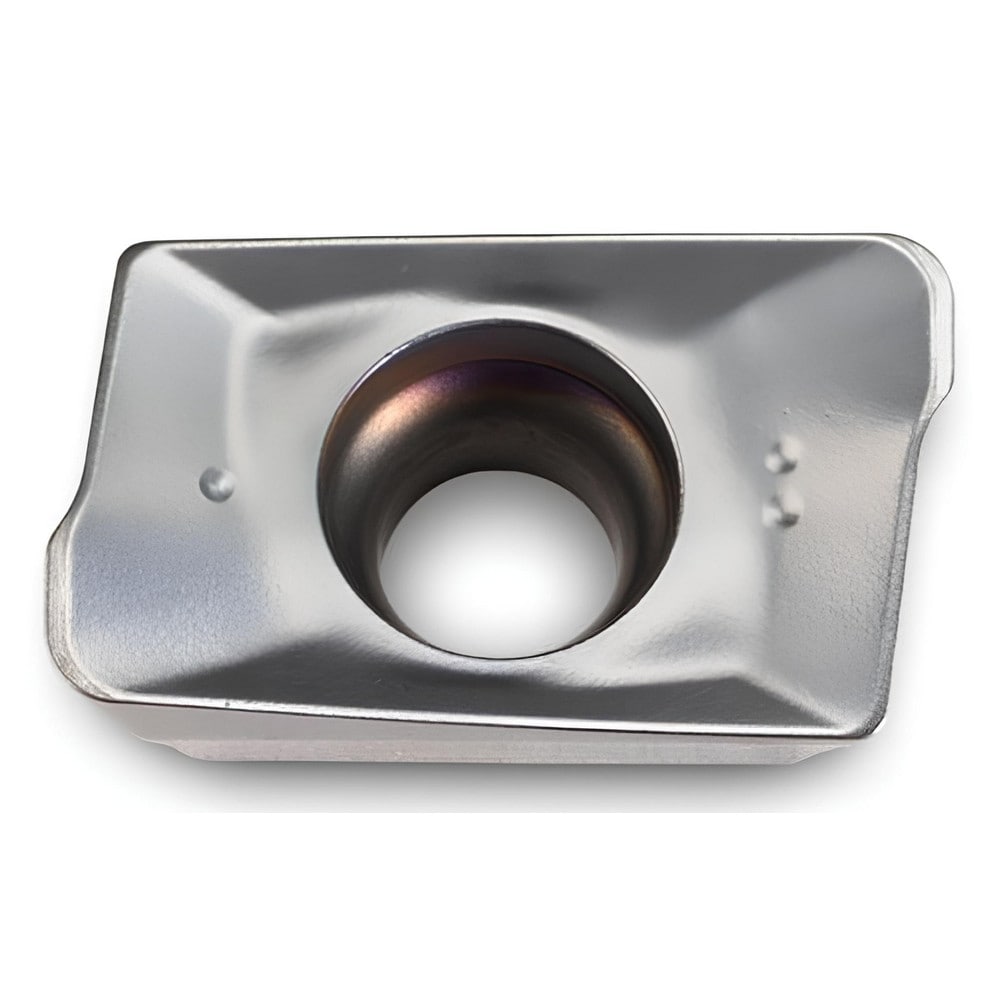

Brand: Ingersoll Cutting Tools / Part #: 5614666
Item #: 67291336
Brand: Ingersoll Cutting Tools
Model #: 5614666
Product Specifications
| Insert Style | APKT |
| Insert Size Code | 09T308 |
| Insert Material | Carbide |
| Manufacturer Grade | TT9080 |
| Inscribed Circle (Decimal Inch) | 0.2440 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | APKT |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3460 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | APKT09T308R-EM |
| Rake Angle | 11.000 |
| Manufacturers Catalog Number | APKT09T308R-EM TT9080 |
| Chip Breaker | EM |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 8.7900 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlTiN; TiN |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.2440 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1500 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4160 |
