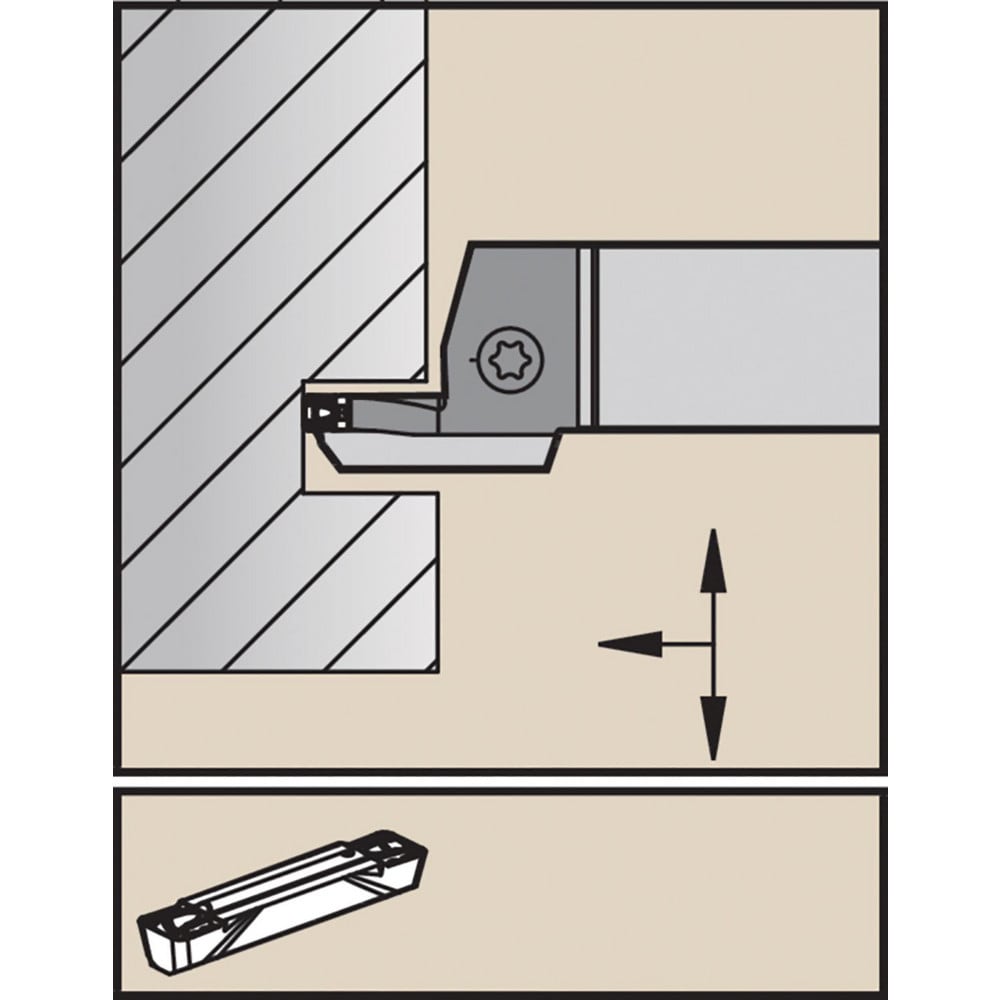

Brand: Widia / Part #: 3656151
Item #: 98000110
Brand: Widia
Model #: 3656151
Product Specifications
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Insert Seat Size | 3 |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6252 |
| Minimum Groove Width (Decimal Inch) | 0.1250 |
| Toolholder Style | WMT |
| Maximum Groove Width (Decimal Inch) | 0.1252 |
| Insert Holding Method | Clamp |
| Insert Compatibility | WMTS125I3P03PT |
| Compatible Insert Size Code | 3 |
| Shank Width/Diameter (Decimal Inch) | 0.9900 |
| Shank Height (Decimal Inch) | 4.6570 |
| Series | WMT |
| Shank Length (Decimal Inch) | 4.6570 |
| Overall Length (Decimal Inch) | 6.0000 |
| Multi-use Tool | No |
| Cutting Tool Application | Face Grooving |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Head Height (Decimal Inch) | 1.0315 |
| Head Length (Decimal Inch) | 0.0000 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Multi-Use Application | No |
| Maximum Bore Depth (Decimal Inch) | 0.0000 |
| Maximum Groove Outside Diameter (Decimal Inch) | 4.0000 |
| Minimum Axial Groove Inside Diameter(mm) | 2.7500 |
| Mount Type | Shank |
| Manufacturers Catalog Number | WMTBR163063-275-400 |
| Toolholder Material | Steel |
| Insert Hand | Right Hand |
| Complete Insert Compatibility | WMTS3 |
| Minimum Bore Diameter (Decimal Inch) | 2.7500 |
| Coolant Through | No |
