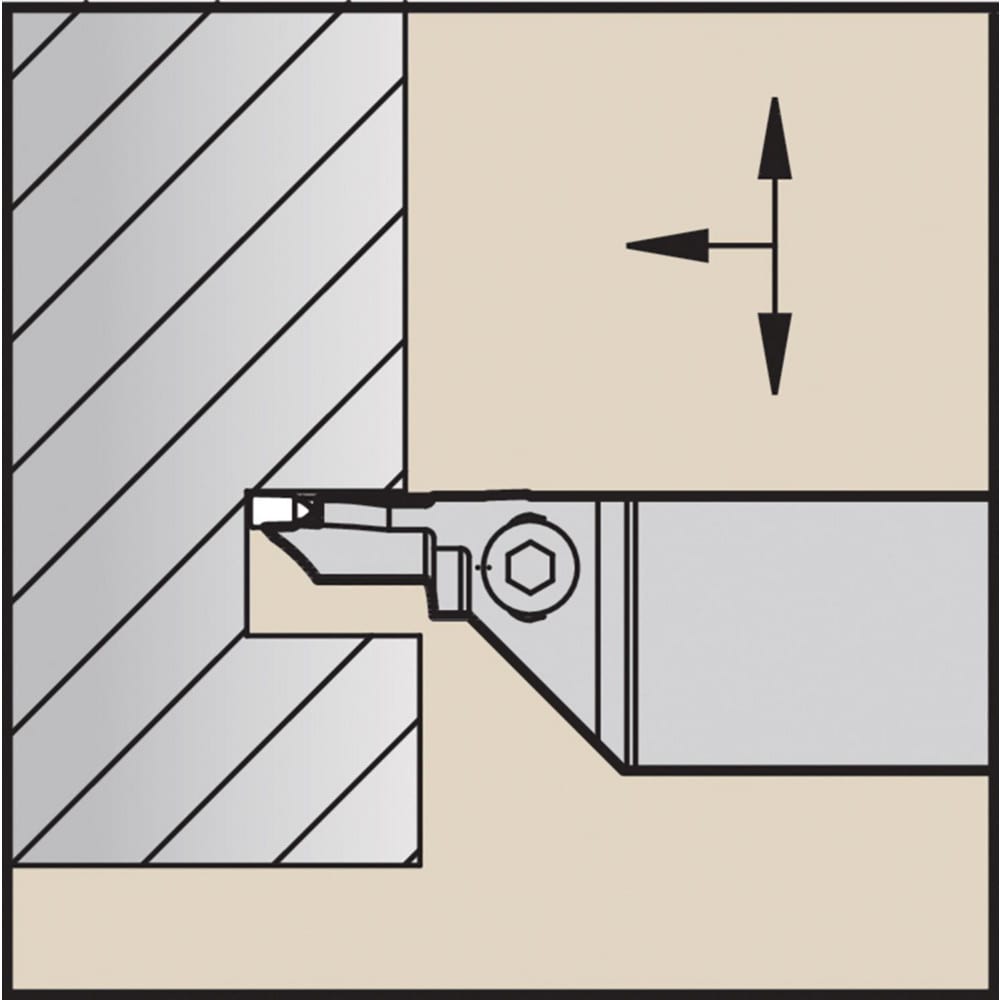

Brand: Widia / Part #: 3634287
Item #: 98001084
Brand: Widia
Model #: 3634287
Product Specifications
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Insert Seat Size | 5 |
| Hand of Holder | Left Hand |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 19.05 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 5.00 |
| Toolholder Style | WMT |
| Insert Holding Method | Clamp |
| Insert Compatibility | Universal |
| Compatible Insert Size Code | 5 |
| Shank Width/Diameter (mm) | 24.84 |
| Shank Height (mm) | 107.96 |
| Series | WMT |
| Shank Length (mm) | 107.960 |
| Overall Length (mm) | 150.0000 |
| Multi-use Tool | No |
| Cutting Tool Application | Face Grooving |
| Back of Bar to Cutting Edge (mm) | 0.00 |
| Head Height (mm) | 25.770 |
| Head Length (mm) | 0.00 |
| Multi-Use Application | No |
| Maximum Groove Outside Diameter (mm) | 100.00 |
| Mount Type | Shank |
| Manufacturers Catalog Number | WMTAL2525M519-070-100 |
| Toolholder Material | Steel |
| Insert Hand | Left Hand |
| Complete Insert Compatibility | WMTS5 |
| Coolant Through | No |
| Minimum Bore Diameter (mm) | 70.000 |
| Maximum Bore Depth (mm) | 0.00 |
