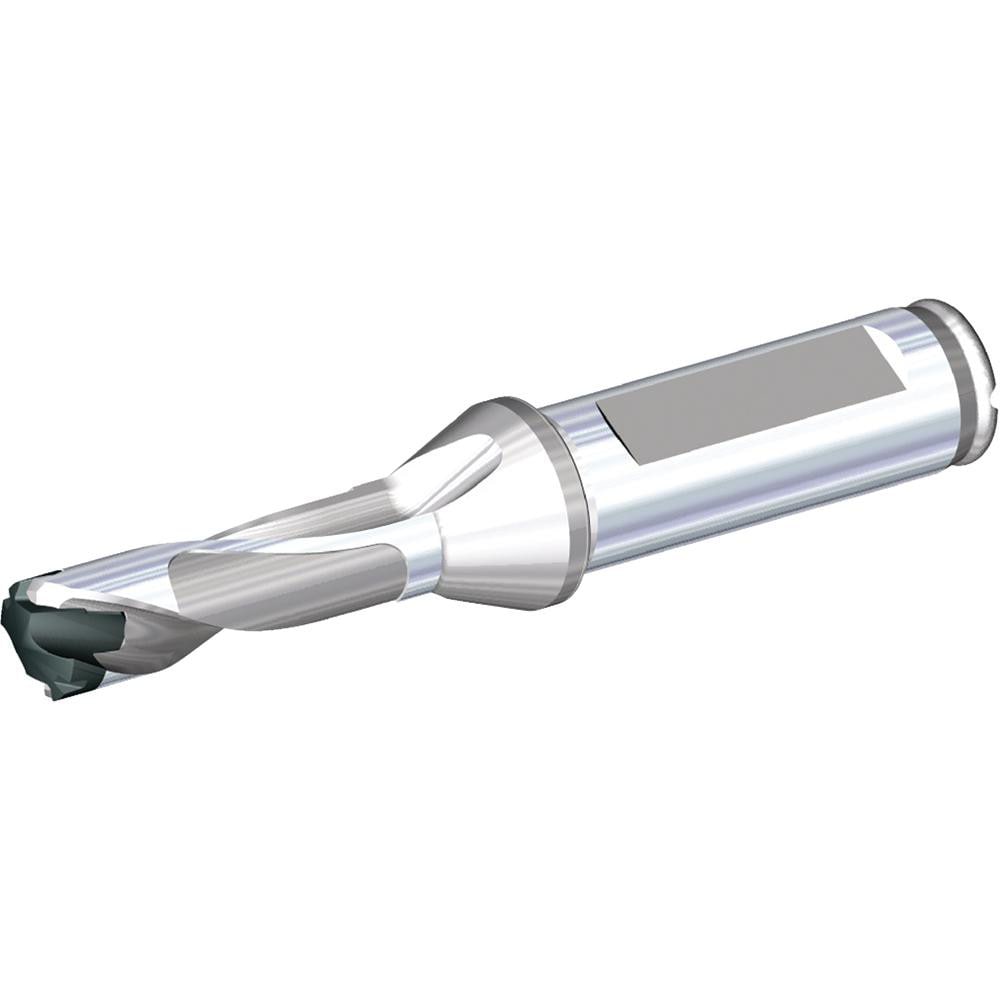

Brand: Widia / Part #: 4098942

Brand: Widia / Part #: 4098942


Item #: 90215765
Brand: Widia
Model #: 4098942

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.4134
Maximum Drill Diameter (Decimal Inch) 0.4327
Drill Depth by Diameter Ratio 3xD
Maximum Drill Depth (Decimal Inch) 1.2991
Shank Type Flatted
Insert Style TDM
Shank Diameter (Inch) 5/8
Shank Diameter (Decimal Inch) 0.6250
Insert Seat Size W15
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W15
Overall Length (Decimal Inch) 3.8898
Overall Length (Inch) 3-57/64
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 1.7835
Body Length (Decimal Inch) 1.7874
Shank Length (Decimal Inch) 1.8898
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.0764
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$222.24
