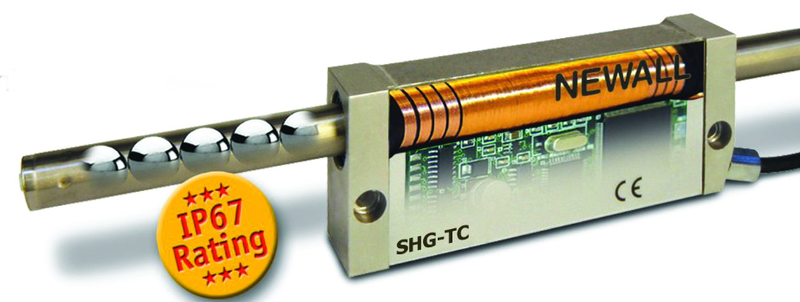

16 x 36" SHGTC Linear Encoder Kit With Bracket

Item #: MS341636M1
Manufacturer: Newall
Mfg #: SHG-TC MFM

Technical Specifications:
•: ±5µ¼m ( 0.0002) •: -20 to 70°C (-4 to 158°F) •: BS EN 50081-2 & BS EN 50082-2 •: D Type 15 Pin (IP54, NEMA 6) •: Distance-Coded •: Stainless Steel •: 0 to 55°C (32 to 131°F) •: 0.00005 •: 4m/s at 1µ¼m resolution •: 9 Core Screened with PUR (polyurethane) cover with no armour •Axis: 2 •Brand Name: Newall •Cable Length: 20" / .5mm •Comments: With Bracket •Model Number: SHG-TC-MFA1636M1 •Style: Inductive •Travel: 16 x 36 •Type: Linear Encoder Kit

Description:
•For MillPwr CNC Controls •Direct plug and play replacement of Acu-Rite glass scales •Withstands dust, dirt, chips, coolant and oil •IP67 rated (fully submersible) •Tolerant to shock and vibration •No mechanical wear, cleaning or maintenance •Easy to install

Shipping Info:
•Actual Weight - 23.0000
