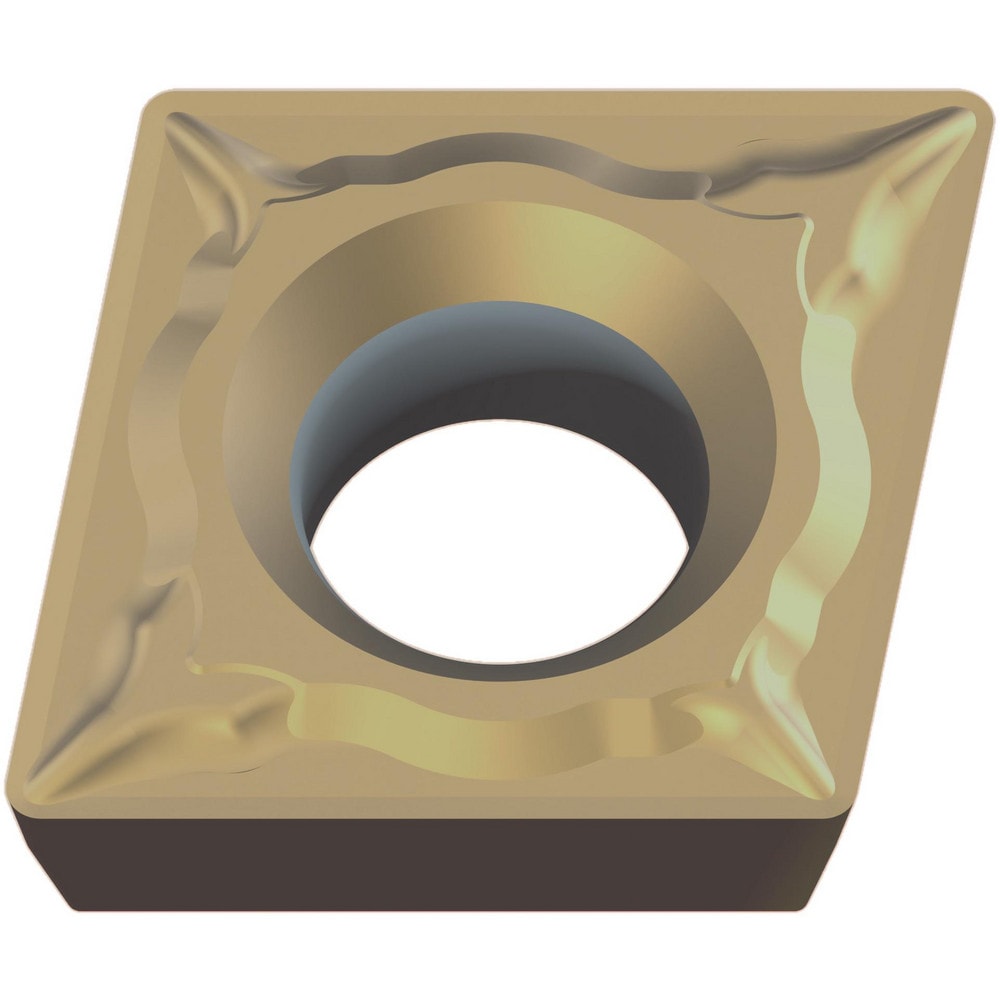

Turning Insert: CPMH2.51.50.5FV MP3025, Cermet
Item #: 01420991
Brand: Mitsubishi
Model #: 616622
Product Specifications
| ANSI Insert Code | CPMH2.51.50.5 |
| ISO Insert Code | CPMH080202 |
| Relief Angle | 11 |
| Insert Style | CPMH |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 80 |
| Manufacturer Grade | MP3025 |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Inscribed Circle (Decimal Inch) | 0.3125 |
| Inscribed Circle (Inch) | 5/16 |
| Inscribed Circle (mm) | 7.94 |
| Insert Material | Cermet |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Clearance Code | P |
| Tolerance Code | M |
| Primary Workpiece Material Code | P |
| Chip Breaker | FV |
| ANSI Size Code | 2.51.50.5 |
| ISO Size Code | 080202 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2.5 |
