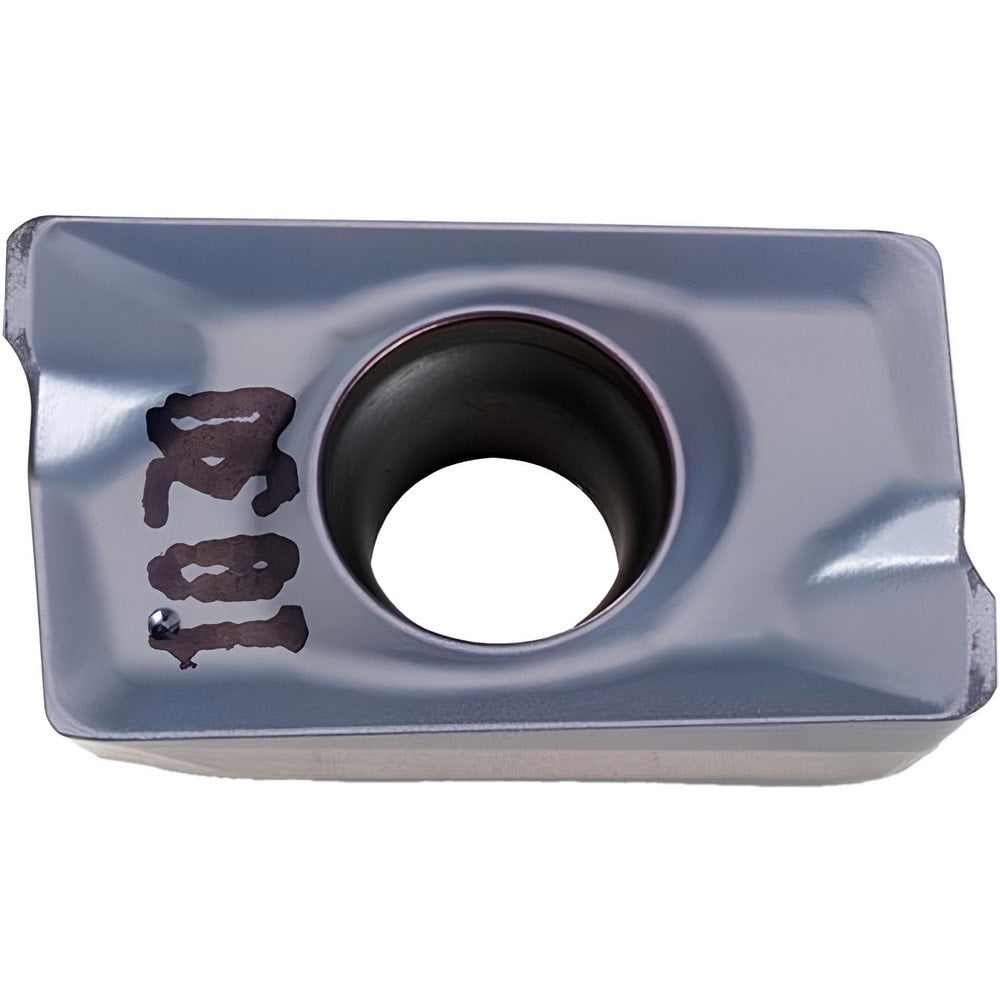

Brand: Ingersoll Cutting Tools / Part #: 5800904
Item #: 67315986
Brand: Ingersoll Cutting Tools
Model #: 5800904
Product Specifications
| Insert Style | APLH |
| Insert Size Code | 53 |
| Insert Material | Carbide |
| Manufacturer Grade | IN5015 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Left Hand |
| Series | APLH |
| Coating Process | CVD |
| Maximum Depth of Cut (Decimal Inch) | 0.6000 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K |
| Ansi Code | APLH53L01 |
| Rake Angle | 11.000 |
| Manufacturers Catalog Number | APLH53L01 IN5015 |
| Cutter Series Compatibility | 12T1B |
| Chip Breaker | None |
| Cutting Direction | Left Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 15.2400 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN; TiN |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2070 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6790 |
