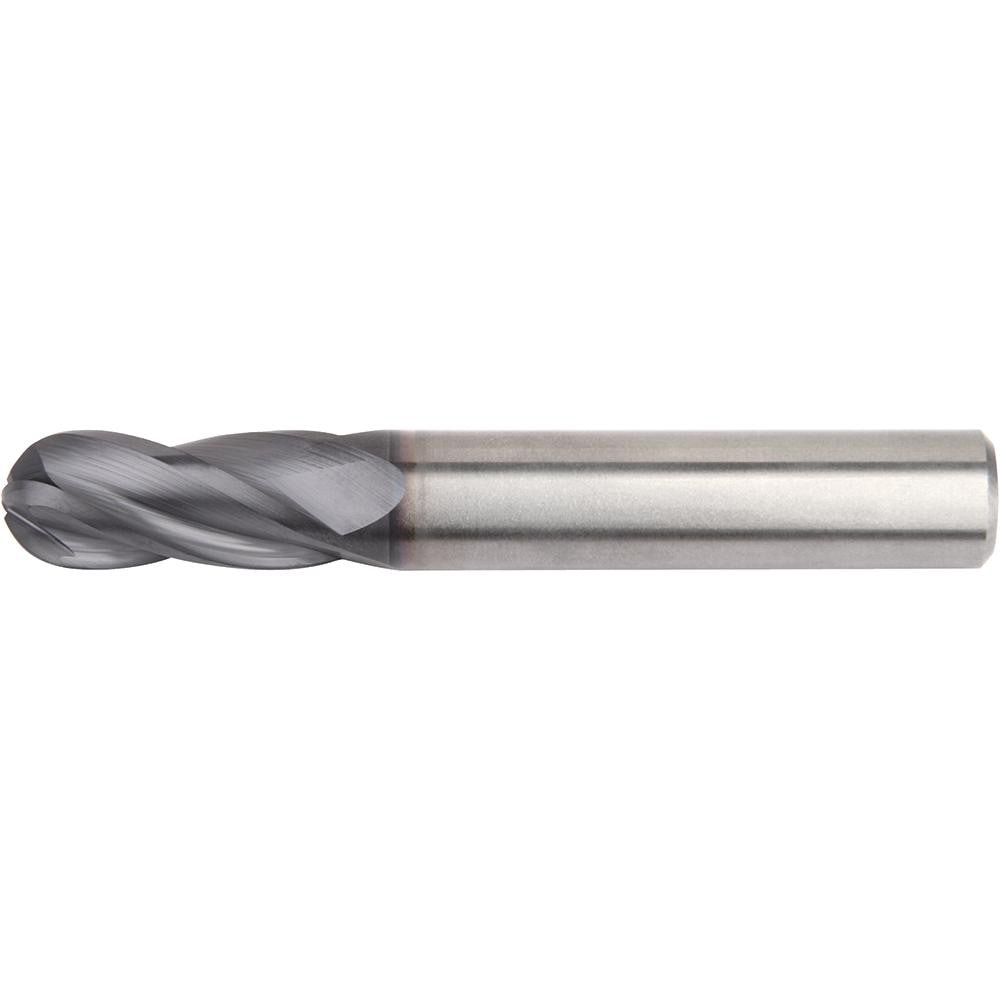

Brand: Widia / Part #: 5825556
Item #: 33983313
Brand: Widia
Model #: 5825556
Product Specifications
| Mill Diameter (mm) | 3.00 |
| Length of Cut (mm) | 20.00 |
| End Mill Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Chipbreaker | No |
| Number Of Flutes | 4 |
| End Type | Single |
| Extended Reach | No |
| Undercutting | No |
| Helix Style | Medium |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Nose Radius (Decimal Inch) | 1.5000 |
| Reach Length (mm) | 20.00 |
| Overall Length (mm) | 75.00 |
| Maximum Helix Angle | 30.00 |
| Minimum Helix Angle | 30.00 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Material Grade | TiAlN |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 4000 |
| Flute Type | Medium |
| Coolant Through | No |
