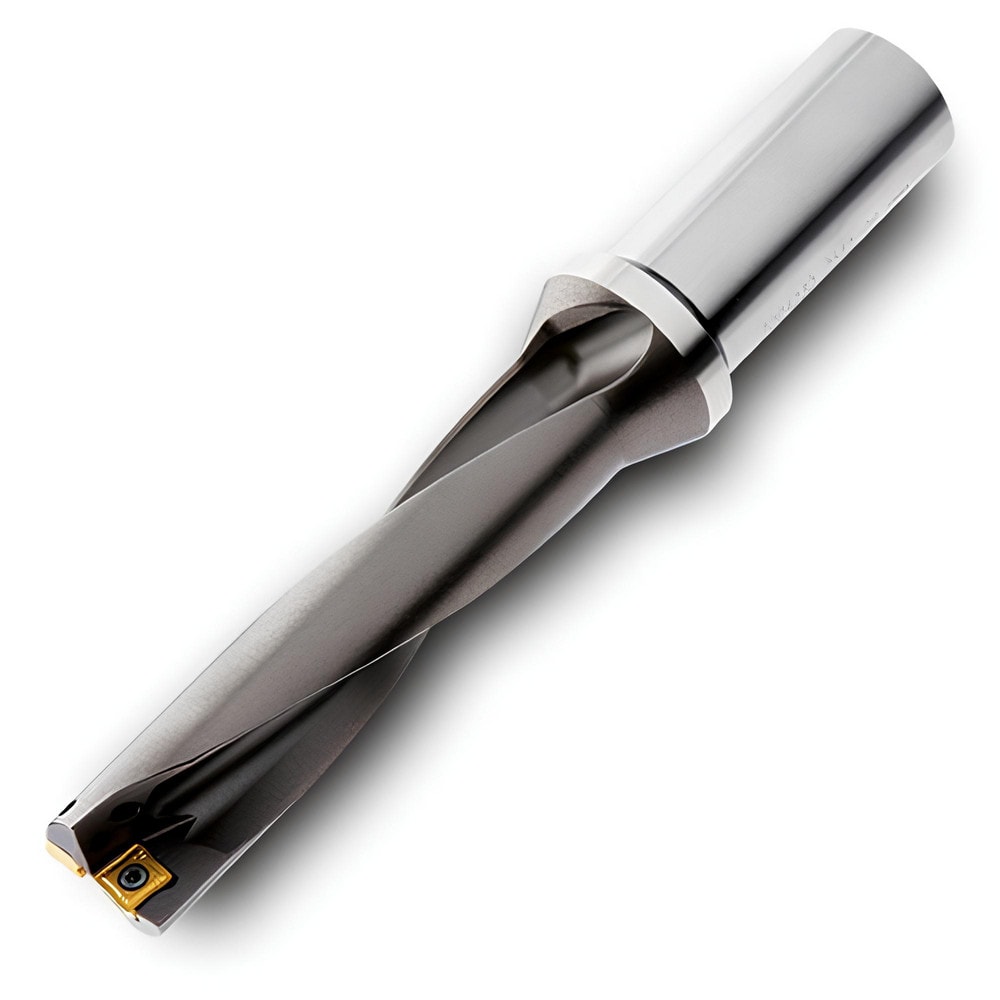

Brand: Ingersoll Cutting Tools / Part #: 6102678
Item #: 96408091
Brand: Ingersoll Cutting Tools
Model #: 6102678
Product Specifications
| Maximum Drill Depth | 175.00 mm |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Depth of Cut (mm) | 175.00 |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 32.0000 |
| Cutting Direction | Right Hand |
| Drill Body Length to Flange (mm) | 198.00 |
| Toolholder Style | QR03 |
| Nose Diameter (Mm) ( - 2 Decimals) | 35.00 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.3780 |
| Overall Length (mm) | 258.0000 |
| Overall Length | 258.00 |
| Through Coolant | Yes |
| Series | QR |
| Flute Length (mm) | 175.00 |
| Shank Length (mm) | 60.000 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Flute Type | Slow Spiral |
| Maximum Cutting Diameter (mm) | 35.00 |
| Maximum Cutting Diameter (Decimal Inch) | 1.3780 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
