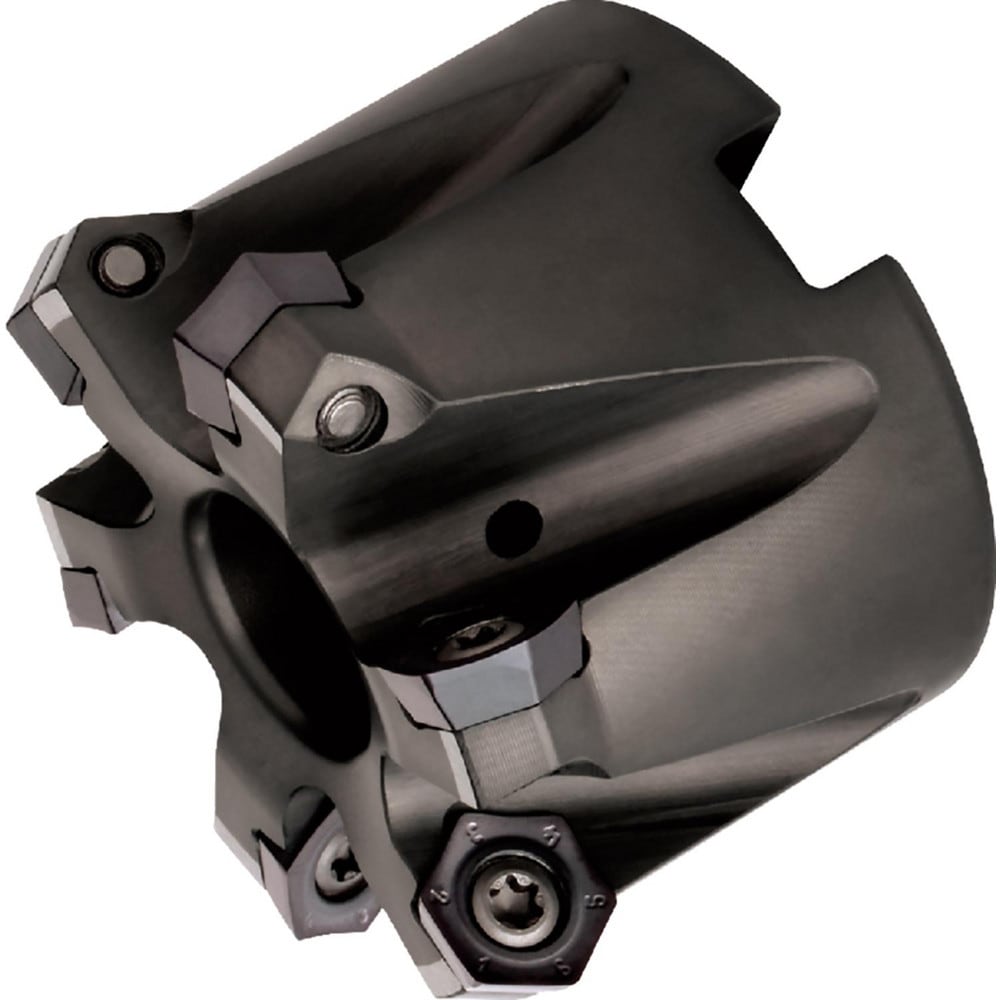

Brand: Widia / Part #: 2961910
Item #: 97733521
Brand: Widia
Model #: 2961910
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Minimum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Inch) | 2-1/4 |
| Maximum Cutting Diameter (Decimal Inch) | 2.2504 |
| Maximum Depth of Cut (Decimal Inch) | 0.1917 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Lead Angle | 58.000 |
| Compatible Insert Size Code | HP..06T3 |
| Cutter Style | M640 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive |
| Series | M640 |
| Hub Diameter (Decimal Inch) | 1.7000 |
| Overall Height (Inch) | 1-1/2 |
| Overall Height (Decimal Inch) | 1.5000 |
| Maximum RPM | 11500.000 |
| Tool Application | Facing; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Complete Insert Compatibility | HPPT06T3DZENGD |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
| Number Of Flutes | 5 |
