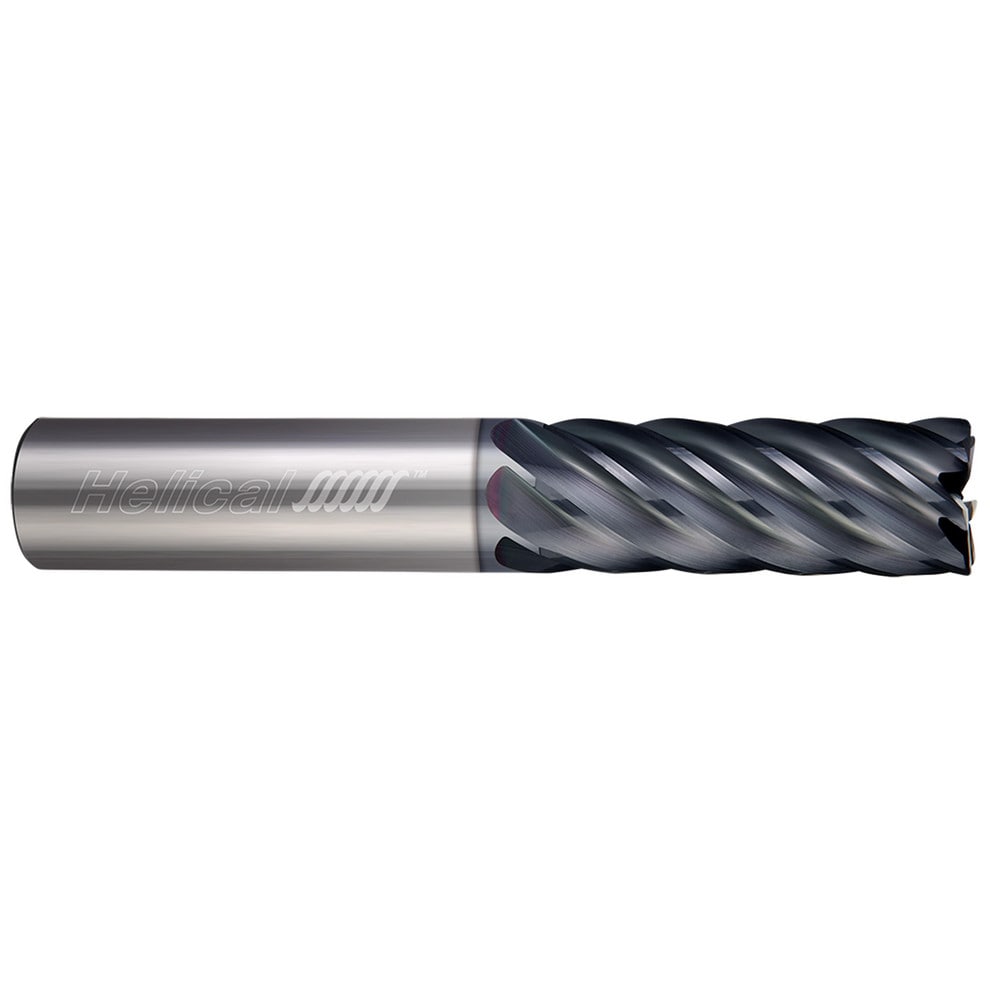

Brand: Helical Solutions / Part #: 81824
Item #: 98330228
Brand: Helical Solutions
Model #: 81824
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Corner Radius (Decimal Inch) | 0.0600 |
| Coating/Finish | Aplus |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 7 |
| Single Or Double End | Single |
| Overall Length (Inch) | 3-1/2 |
| Length of Cut (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.5000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Extended Reach | No |
| Shank Type | Round |
| Centercutting | No |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Series | End Mills for Steels - 7 Flute - Corner Radius - Variable Pitch |
