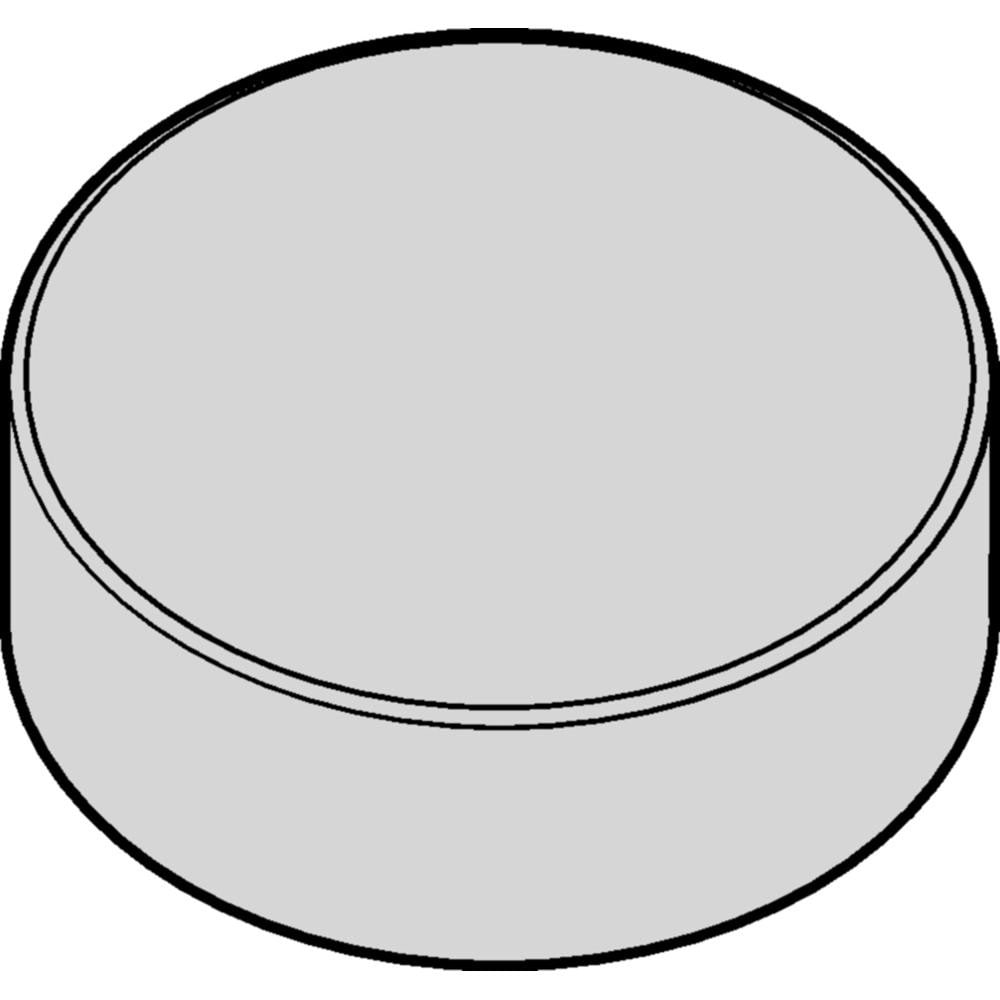

Brand: Widia / Part #: 2952617
Item #: 95192472
Brand: Widia
Model #: 2952617
Product Specifications
| Insert Style | RNG |
| Insert Shape Code | R |
| Insert Size Code | 45 |
| Insert Shape | Round |
| Coating/Finish | Uncoated |
| Manufacturer Grade | CW2015 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Insert Material | Ceramic |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.3125 |
| Clearance Code | N |
| Tolerance Code | G |
| Relief Angle | 0.000 |
| Series | RNGN |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material; Cast Iron |
| Primary Workpiece Material Code | H; K |
| Ansi Code | RNG45T0820 |
| Iso Code | RNGN120700T02020 |
| Manufacturers Catalog Number | RNG45T0820 |
| Cutting Direction | Neutral |
| Coating Classification | Uncoated |
| Chip Breaker | None |
| Cutting Edge Style | Chamfered |
| Style | RNGN |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | External Turning; Internal Turning |
