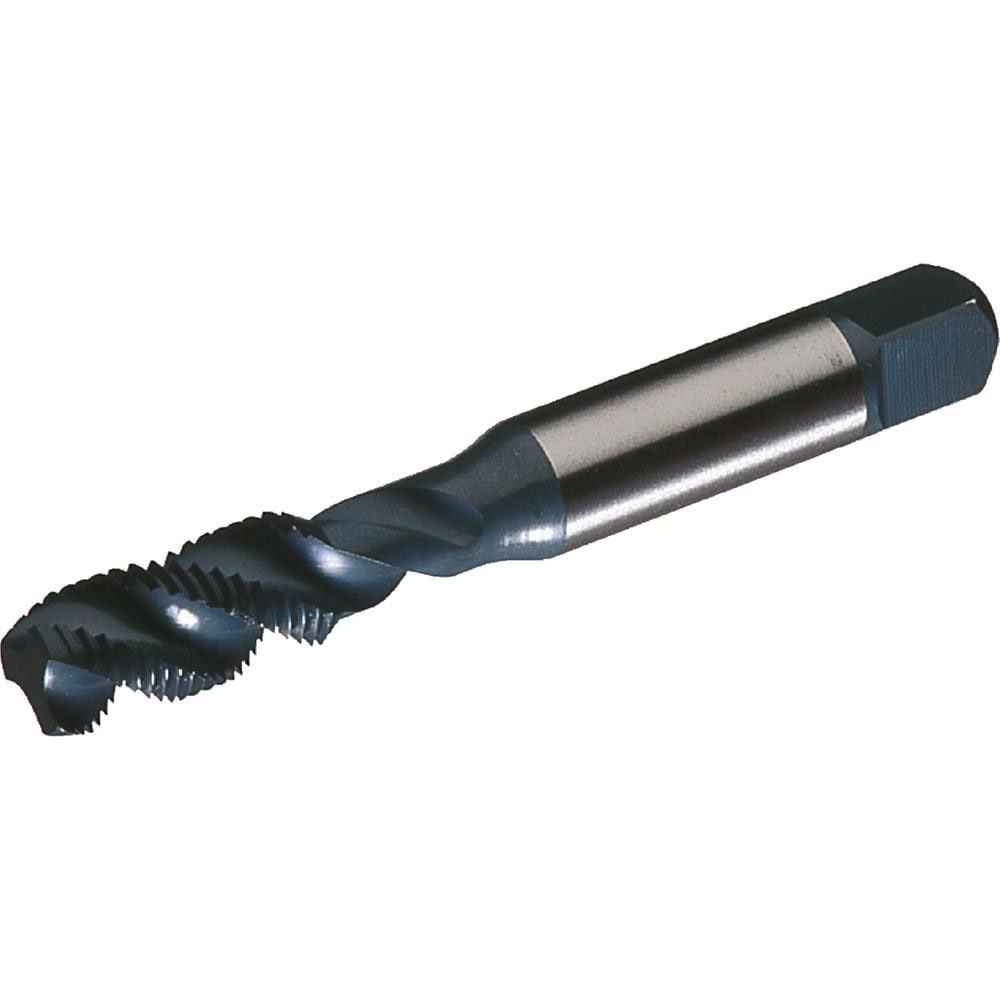

Brand: Widia / Part #: 2748022
Item #: 97519979
Brand: Widia
Model #: 2748022
Product Specifications
| Thread Size (Inch) | 3/8-16 |
| Chamfer | Bottoming |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 16 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Oxide |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 2.9375 |
| Thread Depth (Decimal Inch) | 0.7500 |
| Thread Pitch (Decimal Inch) | 0.0625 |
| Thread Standard | UNC |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Square Size (Decimal Inch) | 0.2860 |
| Material Application | Steel |
| Series | 5344 |
