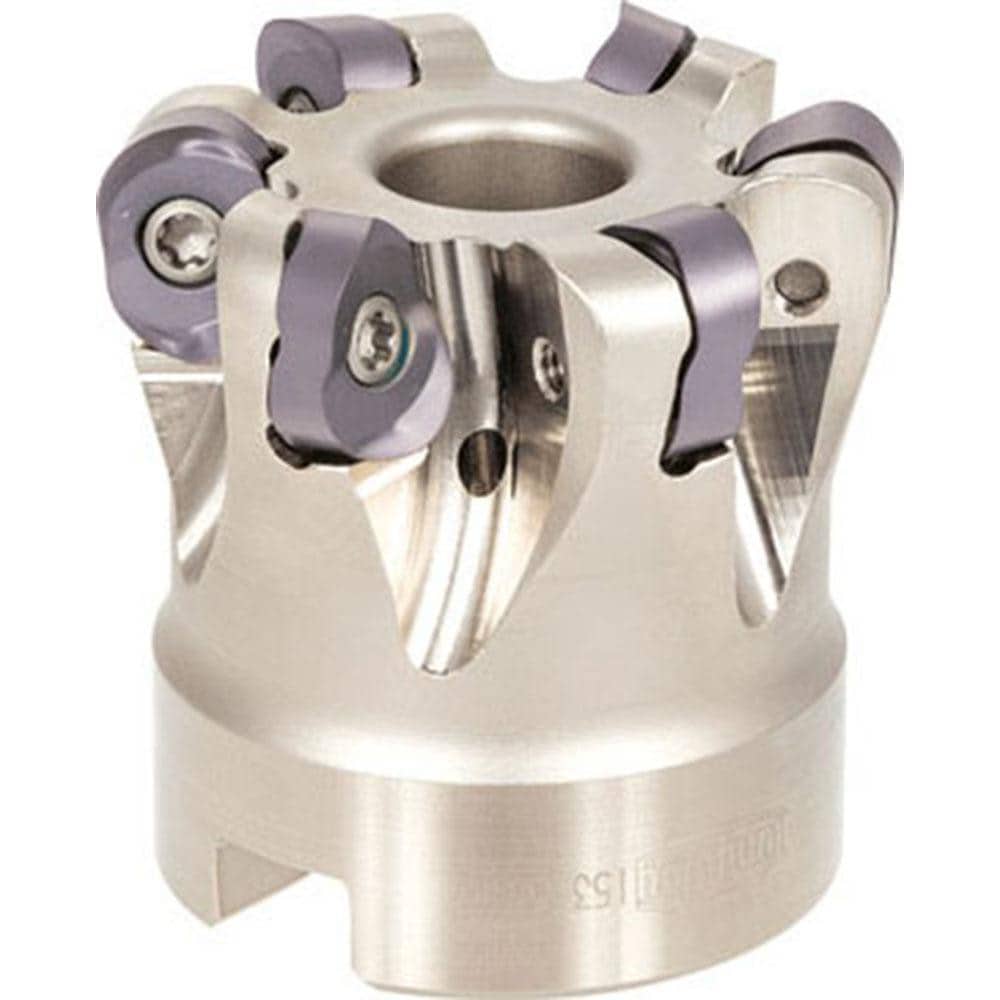

Indexable Copy Face Mills; Minimum Cutting Diameter (mm): 29.80; Cutting Diameter (mm): 40.00; Maximum Cutting Diameter (mm): 40.00; Maximum Depth of Cut (mm): 5.00
Item #: 63726590
Brand: Tungaloy
Model #: 6743392
Product Specifications
| Minimum Cutting Diameter (mm) | 29.80 |
| Cutting Diameter (mm) | 40.00 |
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Arbor Hole Diameter (mm) | 16.00 |
| Compatible Insert Size Code | LNMX0506R5-MJ |
| Maximum Ramping Angle | 2.0 |
| Cutter Style | TXLN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | TXLN |
| Hub Diameter (mm) | 35.000 |
| Keyway Width (mm) | 8.40 |
| Overall Height (Mm - 5 Decimals) | 40.00000 |
| Complete Insert Compatibility | LNMX0506R5-MJ |
| Number Of Cutter Inserts | 5 |
| Overall Diameter (Mm - 4 Decimals) | 35.0000 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Minimum Cutting Diameter (mm) | 29.80 |
| Cutting Diameter (mm) | 40.00 |
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Arbor Hole Diameter (mm) | 16.00 |
| Compatible Insert Size Code | LNMX0506R5-MJ |
| Maximum Ramping Angle | 2.0 |
| Cutter Style | TXLN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | TXLN |
| Hub Diameter (mm) | 35.000 |
| Keyway Width (mm) | 8.40 |
| Overall Height (Mm - 5 Decimals) | 40.00000 |
| Complete Insert Compatibility | LNMX0506R5-MJ |
| Number Of Cutter Inserts | 5 |
| Overall Diameter (Mm - 4 Decimals) | 35.0000 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| MSC Part # | 63726590 |
| Mfr Part # | 6743392 |
| Country of Origin Country of Origin is subject to change | Japan |
