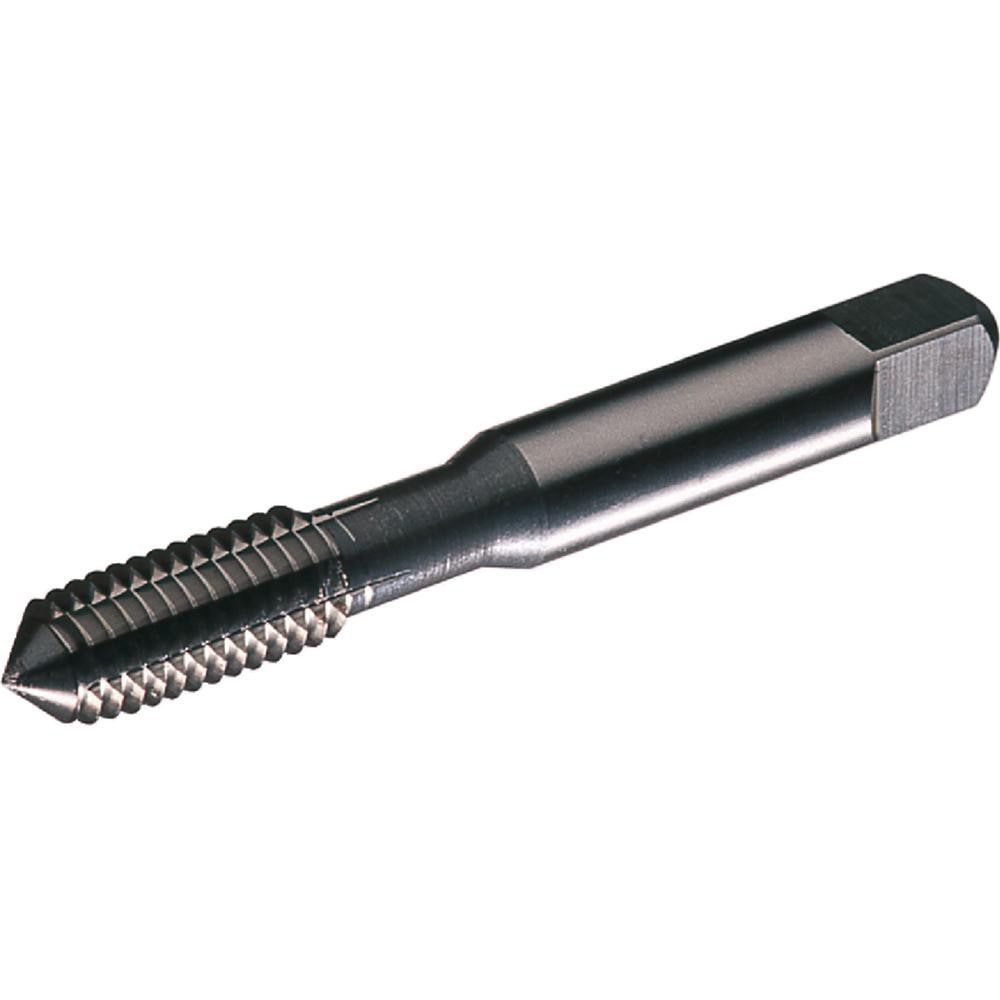

Brand: Widia / Part #: 2746510
Item #: 98979651
Brand: Widia
Model #: 2746510
Product Specifications
| Thread Size (mm) | M3x0.5 |
| Overall Length (mm) | 49.2800 |
| Chamfer | Bottoming |
| Coating/Finish | TiCN |
| Thread Limit | D5 |
| Thread Pitch (mm) | 0.50 |
| Thread Standard | Metric |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (mm) | 7.95 |
| Thread Depth (mm) | 15.90 |
| Thread Depth | 15.9000 |
| Shank Diameter (mm) | 3.5800 |
| Neck Length | 7.95 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Application | Metal |
| Series | 5512TC |
| Tap Type | Blind |
| Tapping Depth (mm) | 15.90 |
| Shank Length (mm) | 33.380 |
| Threads per Inch | 51 |
| Class Of Fit | 6H |
| Coolant Through | No |
