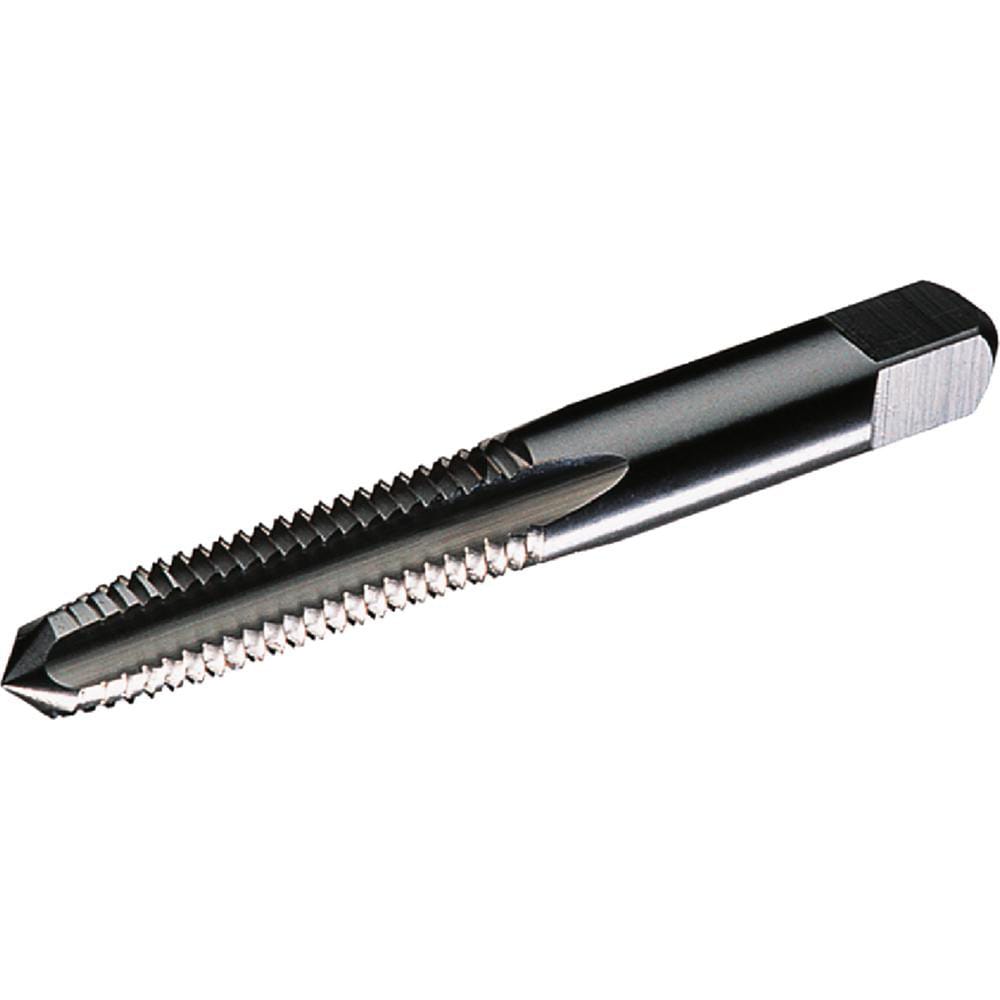

Brand: Widia / Part #: 2749141
Item #: 72384498
Brand: Widia
Model #: 2749141
Product Specifications
| Tap Type | Machine |
| Thread Size (mm) | M12x1.75 |
| Thread Limit | D6 |
| Class Of Fit | 6H |
| Number Of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 15 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | Metric |
| Overall Length (mm) | 85.7300 |
| Thread Pitch (mm) | 1.75 |
| Thread Length (mm) | 42.07 |
| Thread Depth (mm) | 42.07 |
| Application | Metal |
| Shank Diameter (mm) | 9.3200 |
| Square Length (mm) | 11.11 |
| Series | 5353 |
| Shank Length (mm) | 43.660 |
| Shank Length (Decimal Inch) | 1.7189 |
