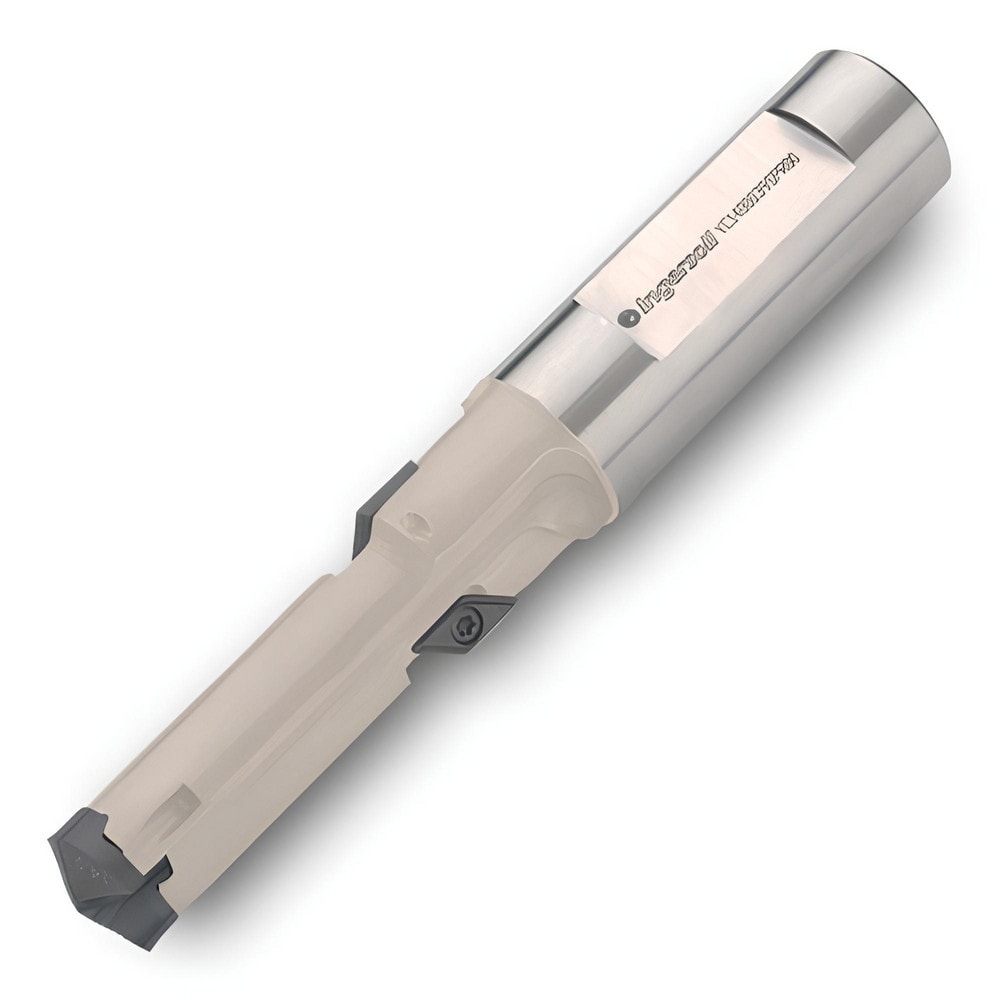

Brand: Ingersoll Cutting Tools / Part #: 3221087
Item #: 98787583
Brand: Ingersoll Cutting Tools
Model #: 3221087
Product Specifications
| Minimum Drill Diameter (mm) | 8.50 |
| Maximum Drill Diameter (mm) | 8.90 |
| Maximum Drill Depth (mm) | 46.51 |
| Shank Type | Weldon Flat |
| Insert Style | KOMT; YBB; YAB |
| Insert Seat Size | 8 |
| Shank Diameter (mm) | 14.0000 |
| Tool Material | Steel |
| Compatible Insert Style | KOMT; YBB; YAB |
| Compatible Insert Size Code | 050104; 08.. |
| Overall Length (mm) | 91.4400 |
| Series | YC |
| Toolholder Style | YC |
| Flute Length (mm) | 46.51 |
| Body Length | 46.510 |
| Shank Length (mm) | 44.930 |
| Tool Application | Drilling; Chamfering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
