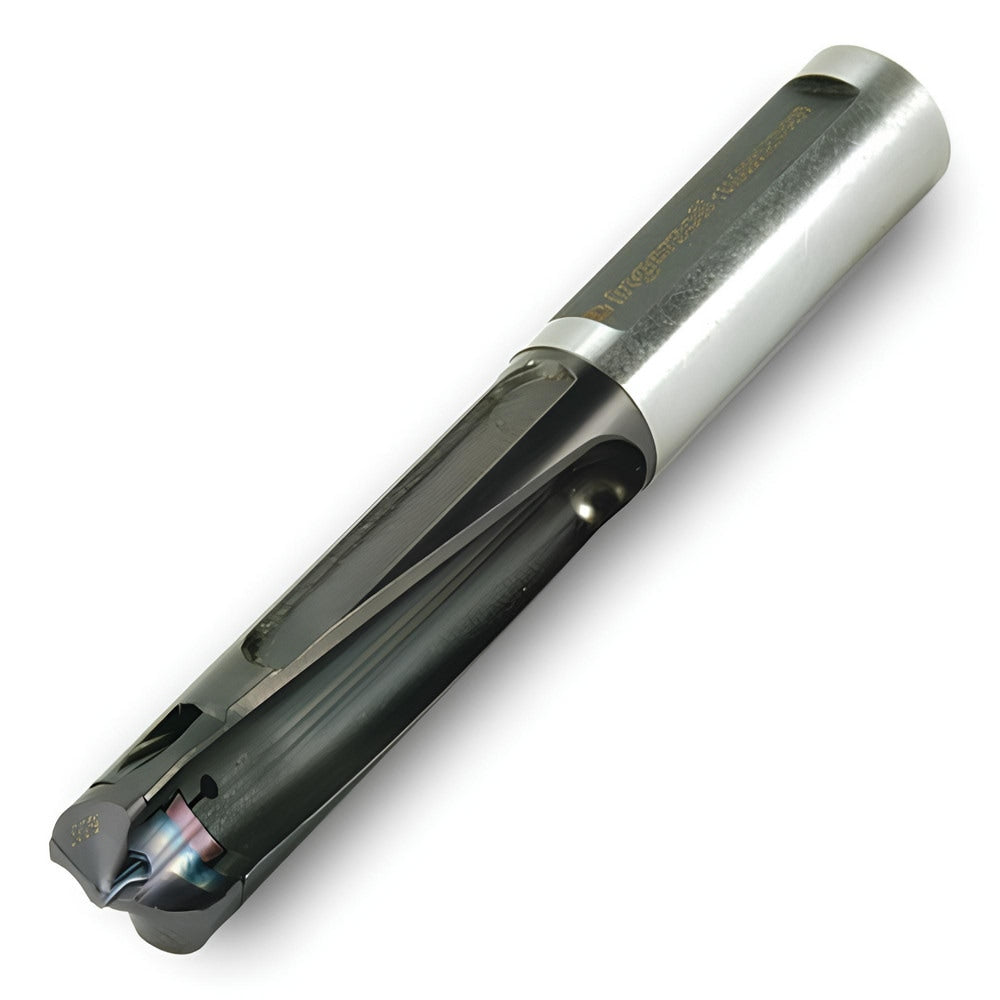

Brand: Ingersoll Cutting Tools / Part #: 3221126
Item #: 98788474
Brand: Ingersoll Cutting Tools
Model #: 3221126
Product Specifications
| Minimum Drill Diameter (mm) | 20.00 |
| Maximum Drill Diameter (mm) | 20.90 |
| Drill Depth by Diameter Ratio | 3.5xD |
| Maximum Drill Depth (mm) | 84.58 |
| Shank Type | Weldon Flat |
| Insert Style | YBB; YAB |
| Insert Seat Size | 20 |
| Shank Diameter (mm) | 20.0000 |
| Tool Material | Steel |
| Compatible Insert Style | YBB; YAB |
| Compatible Insert Size Code | 20.. |
| Overall Length (mm) | 138.6800 |
| Series | YD |
| Toolholder Style | YD |
| Flute Length (mm) | 84.58 |
| Body Length | 84.580 |
| Shank Length (mm) | 54.100 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
