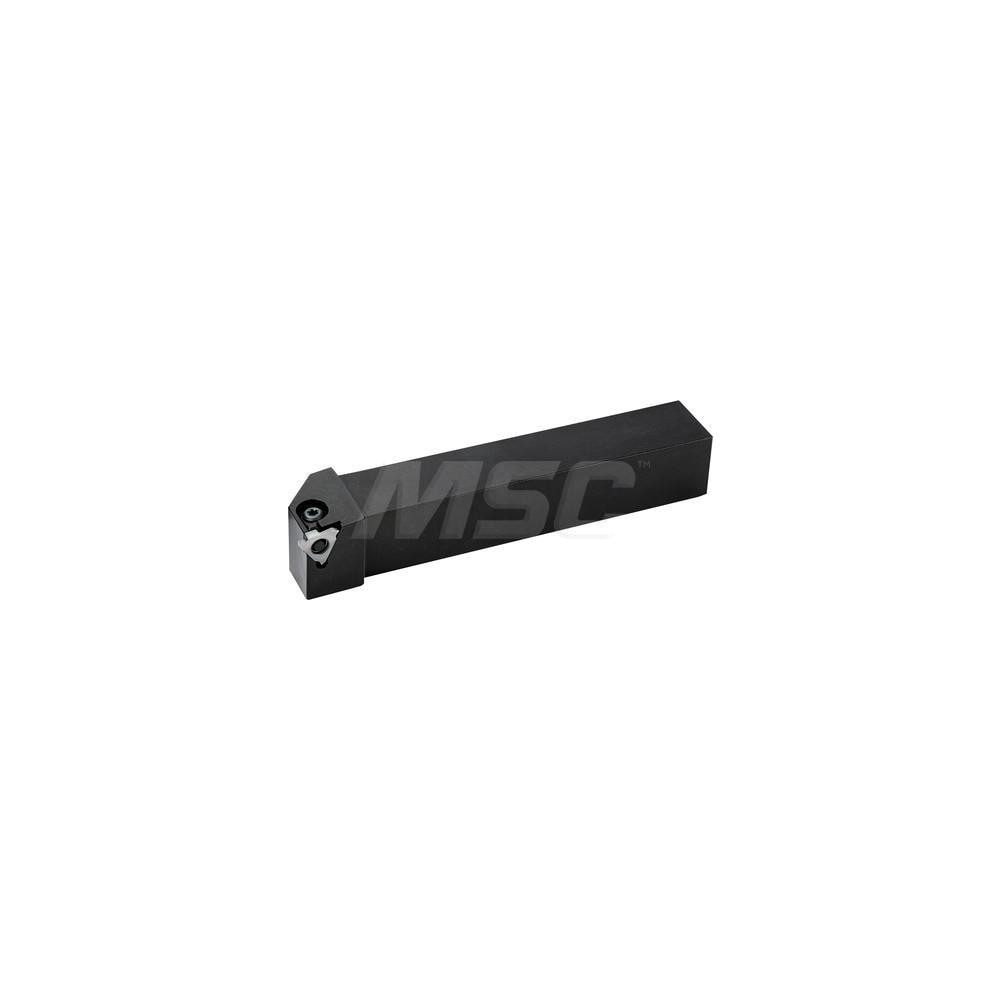

Brand: Kyocera / Part #: 8805043
Item #: 50396795
Brand: Kyocera
Model #: 8805043
Product Specifications
| Internal or External | External |
| Toolholder Type | External Grooving |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Minimum Groove Width (Decimal Inch) | 0.0130 |
| Toolholder Style | KGBA |
| Maximum Groove Width (Decimal Inch) | 0.1890 |
| Insert Holding Method | Clamp |
| Insert Compatibility | GBA32R/L.. |
| Compatible Insert Size Code | GBA32R |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | KGBA |
| Shank Length (Decimal Inch) | 4.9960 |
| Overall Length (Decimal Inch) | 6.0000 |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Height (Decimal Inch) | 1.1600 |
| Head Length (Decimal Inch) | 1.0040 |
| Standards | ISO; ANSI |
| Maximum Bore Depth (Decimal Inch) | 1.0040 |
| Manufacturers Catalog Number | KGBAR163 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | GBA32R/L 125-020; GBA32R/L 100-005; GBA32R/L 033-005; GBA32R/L 078N; GBA32R/L 130-020; GBA32R/L 047N; GBA32R/L 058N; GBA32R/L 120-005; GBA32R/L 041N; GBA32R/L 031N; GBA32R/L 050-005; GBA32R/L 094N; GBA32R/L 062N; GBA32R/L 095-005; GBA32R/L 075-005; GBA32R/L 110-005 |
| Coolant Through | No |
