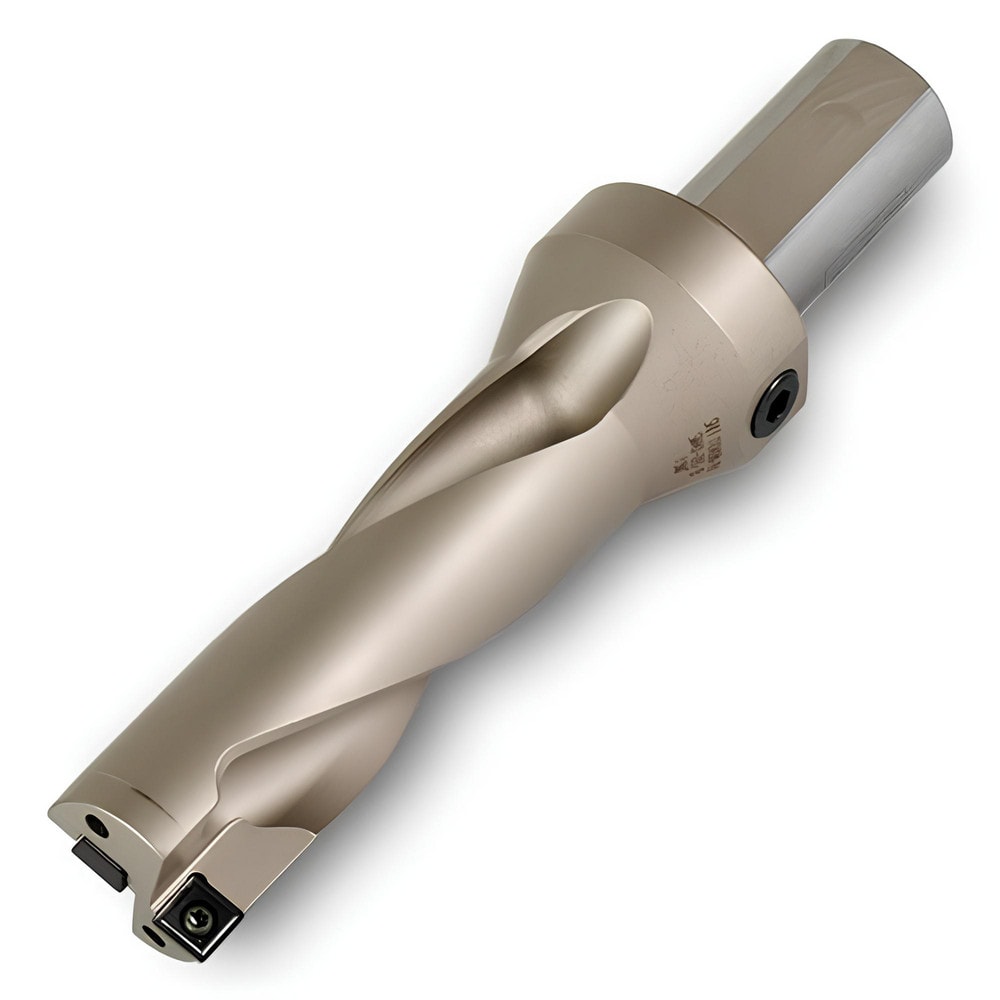

Brand: Ingersoll Cutting Tools / Part #: 3224074
Item #: 00511014
Brand: Ingersoll Cutting Tools
Model #: 3224074
Product Specifications
Maximum Drill Depth | 2.9100 in |
Drill Depth by Diameter Ratio | 3xD |
Maximum Depth of Cut (Decimal Inch) | 2.9100 |
Shank Type | Weldon Flat |
Shank Diameter (Inch) | 1-1/4 |
Cutting Direction | Right Hand |
Drill Body Length to Flange (Decimal Inch) | 4.4100 |
Toolholder Style | QF02 |
Nose Diameter (Decimal Inch - 4 Decimals) | 0.9690 |
Overall Length (Decimal Inch) | 6.7700 |
Overall Length | 6.77 |
Through Coolant | Yes |
Series | QF |
Flute Length (Decimal Inch) | 2.9100 |
Shank Length (Decimal Inch) | 2.3600 |
Primary Workpiece Material | Universal |
Primary Workpiece Material Code | O |
Flute Type | Slow Spiral |
Maximum Cutting Diameter (Decimal Inch) | 0.9690 |
Number Of Flutes | 2 |
Coolant Through | Yes |
