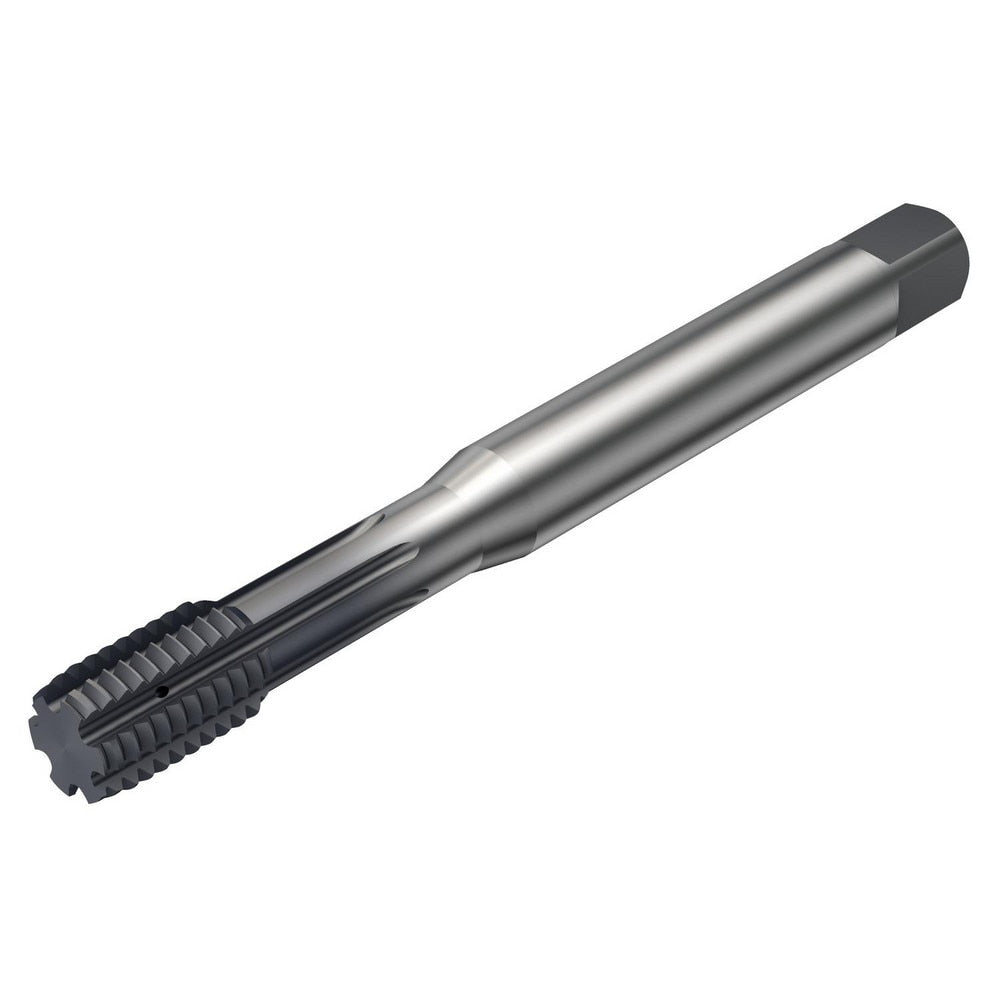

Thread Forming Tap: M, 6HX Class of Fit, Semi-Bottoming, Carbide, AlCrN Coated
Item #: 02216364
Brand: Sandvik Coromant
Model #: 8405701
Product Specifications
| Thread Size (mm) | M6 |
| Thread Standard | M |
| Chamfer | Semi-Bottoming |
| Chamfered Threads | 2-3P |
| Material | Carbide |
| Coating/Finish | AlCrN |
| Coolant Through | Yes |
| Class Of Fit | 6HX |
| Thread Limit | D7 |
| Overall Length (Decimal Inch) | 3.1496 |
| Overall Length (mm) | 80 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.4331 |
| Thread Length (mm) | 11.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.0000 |
| Material Application | Non-Ferrous Metal |
| Application | Blind Hole Threading; Through-Hole Threading |
| Series | CoroTap™ 400 |
| Material Application Code | N |
| UNSPSC Code | 23291800 |
