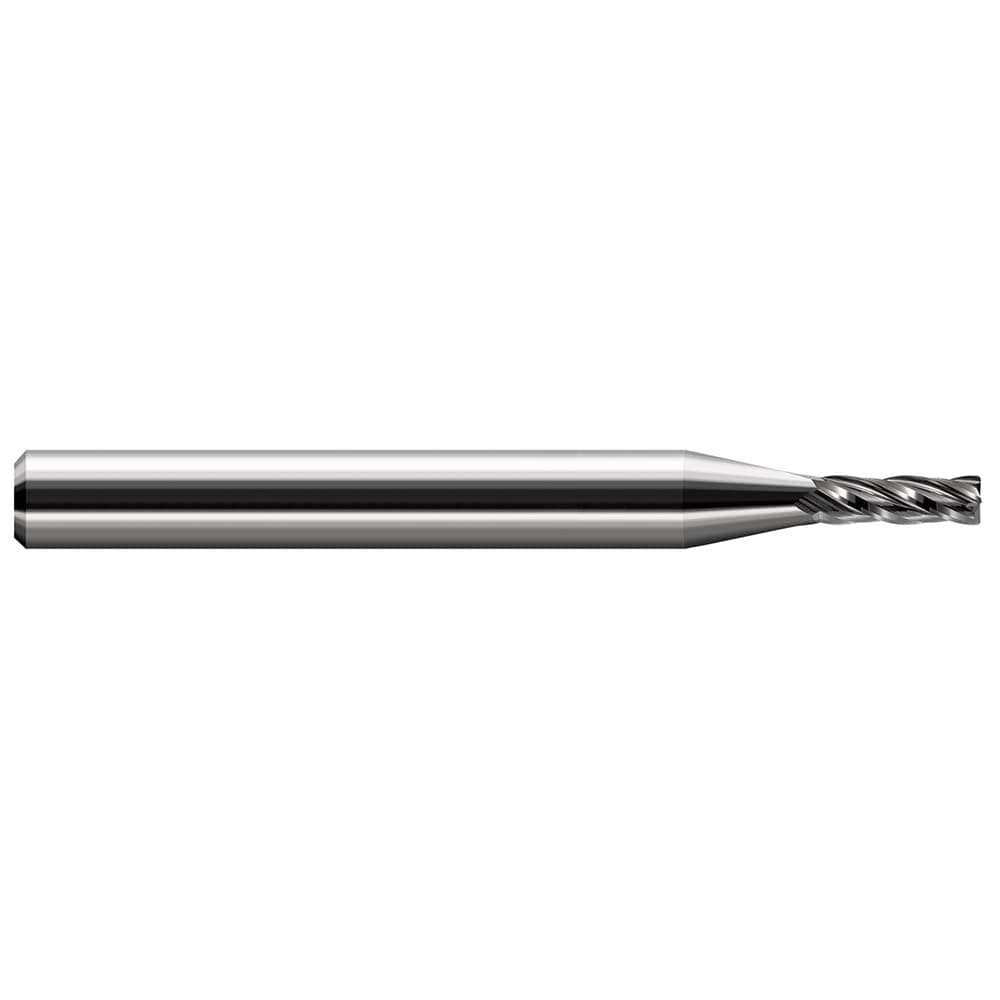

Brand: Harvey Tool / Part #: 26393
Item #: 45825569
Brand: Harvey Tool
Model #: 26393
Product Specifications
| Corner Radius (Decimal Inch) | 0.0050 |
| Coating/Finish | Bright/Uncoated |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.0930 |
| Flute Direction | Right Hand |
| Helix Angle | 30 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2790 |
| Flute Type | Helical |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/8 |
| Series | Miniature End Mills - Corner Radius - Stub & Standard |
