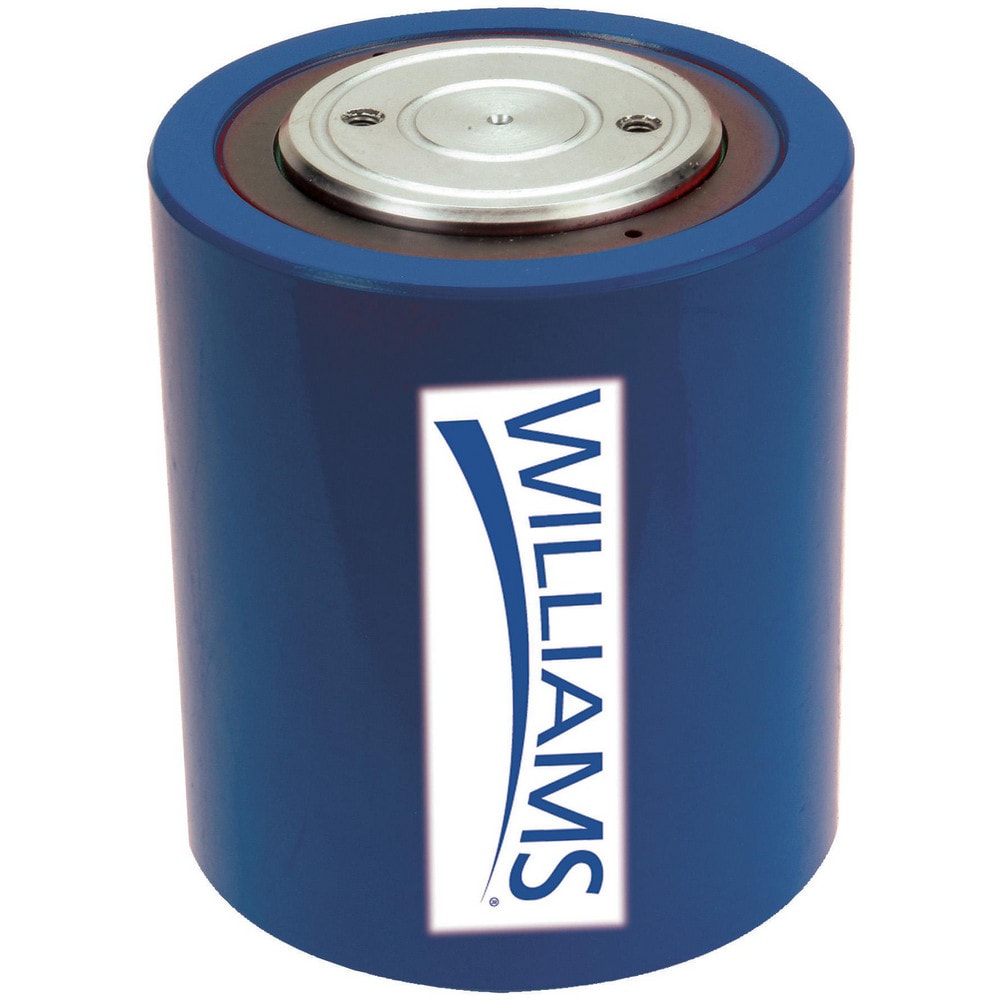

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 50; Stroke Length: 2.36; Piston Stroke (Decimal Inch): 2.3600; Oil Capacity: 23.29; Cylinder Bore Diameter (Decimal Inch): 4.88; Cylinder Effective Area: 9.87; Lowered Height: 4.80
Item #: 48648364
Brand: Williams
Model #: JHW6CL50T02
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 50 |
| Stroke Length | 2.36 |
| Piston Stroke (Decimal Inch) | 2.3600 |
| Oil Capacity | 23.29 |
| Cylinder Bore Diameter (Decimal Inch) | 4.88 |
| Cylinder Effective Area | 9.87 |
| Lowered Height | 4.80 |
| Retracted Length | 5 |
| Extended Length | 7.17 |
| Cushion Type | No Cushion |
| Bore Diameter | 4.8800 |
| Outside Diameter | 3.54 |
| Rod Diameter | 2.76 |
| Plunger Type | Solid |
| Telescopic | No |
| Maximum Working Pressure | 10132.000 |
| Body Material | Steel |
| Rod Thread Size | 0.32 |
| Saddle Diameter | 2.76 |
| Plunger Internal Thread Size | M5 |
| Series | 0 |
| Collar Thread | 2-3/4 - 16 |
| Collar Thread Length | 1.81 |
| Plunger Internal Thread Length | 0.32 |
| Y Center Hole Diameter | 2.76 |
| Maximum Height (Inch) | 7.1700 |
| Includes | Includes high flow ball coupler and dust cap |
| For Use With | Low clearance lifting |
| UNSPSC Code | 27121602 |
