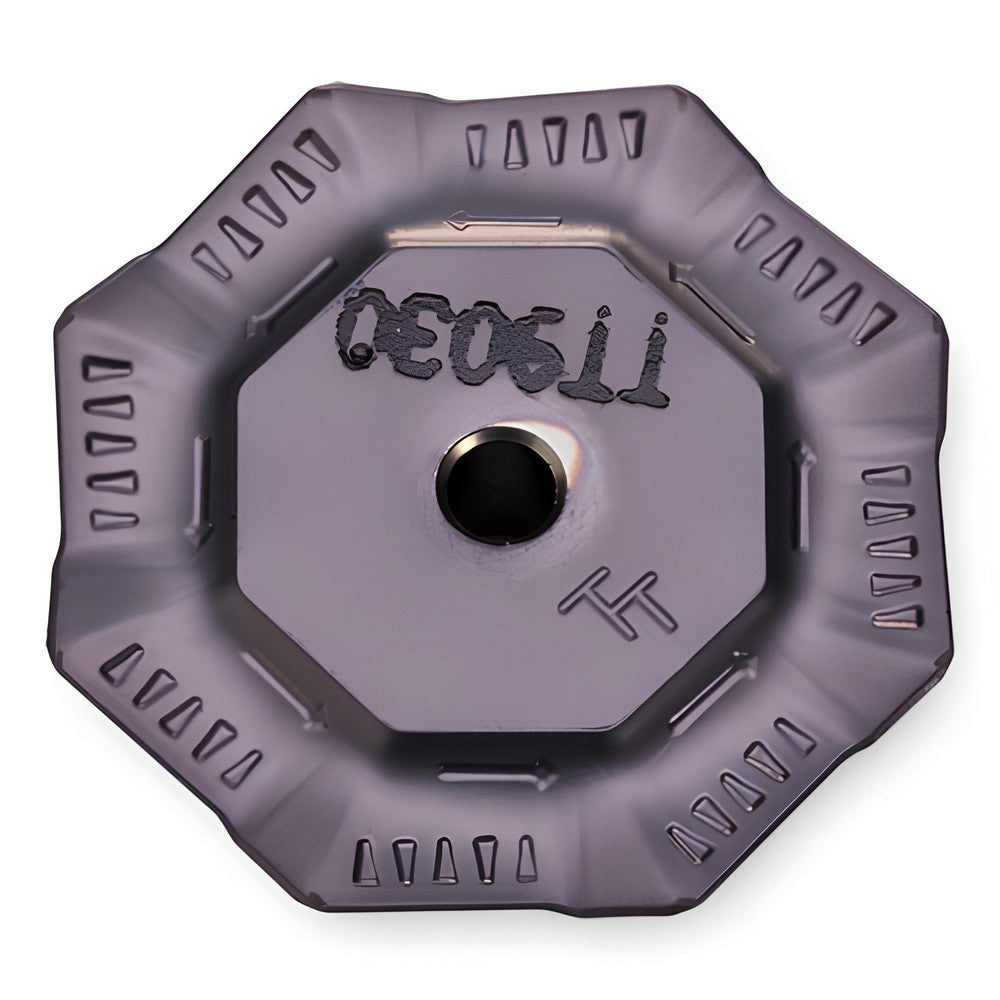

Brand: Ingersoll Cutting Tools / Part #: 5812915
Item #: 67316539
Brand: Ingersoll Cutting Tools
Model #: 5812915
Product Specifications
| Insert Style | OFMR |
| Insert Size Code | 0704 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2540 |
| Inscribed Circle (Decimal Inch) | 0.6900 |
| Corner Radius (Decimal Inch) | 0.0240 |
| Insert Hand | Right Hand |
| Series | OFMR |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3500 |
| Number Of Cutting Edges | 8 |
| Insert Shape | Octagon |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | OFMR0704AER-M |
| Rake Angle | 25.000 |
| Manufacturers Catalog Number | OFMR0704AER-M IN2540 |
| Cutter Series Compatibility | 5N2L |
| Chip Breaker | M |
| Cutting Direction | Right Hand |
| Shape | Octagon |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.6900 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2010 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6900 |
